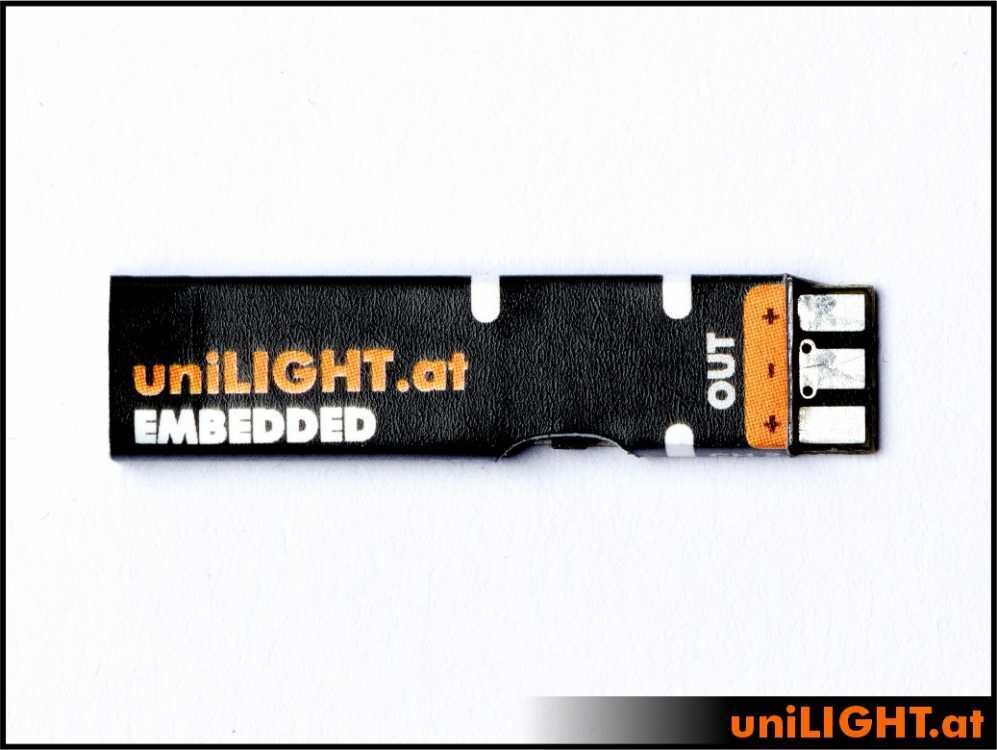

The EMBEDDED is currently the smallest yet most advanced lighting control system from uniLIGHT.at. Measuring approximately 7x30x2.5 mm, it is about the size of a matchbox, allowing it to be integrated virtually anywhere, including directly into lights or industrial applications. It supports 1 ½ functions: a full-featured, configurable channel and a second, linked switching channel to operate, for example, the navigation light of a DUAL light.

It is equipped with a wealth of new and existing functions and is therefore suitable for virtually all applications. As a member of the uniLIGHTPLUS family, it can be fully programmed and configured using the programming cable and the uniLIGHT DESK. The button can only be used to change the flashing pattern in solo mode and the speed of the pattern.
Like other uniLIGHT controllers, the EMBEDDED can be connected directly to a battery or via the included Y-cable. For uniLIGHT.at lights, this is usually a 2S LiPo battery. As a new feature, however, it can also be connected directly to the receiver in HV systems.

With the EMBEDDED, we deliberately omitted our standard connectors for the lights because, in most cases, the controller can be placed directly inside the lamp—i.e., soldered in. Due to this fixed wiring, there is no short-circuit or reverse-polarity protection; these features were omitted in favor of a smaller form factor.

Technical Specifications:

• Supply voltage: 4.8–9.6 V
• Weight (without cable): 1 g
• Dimensions: 7.3 x 30.8 x 2.6 mm (W/L/H)
• Max. current: 3 A, up to 16 V
• Max. pulse current: 5 A, up to 16 V
• Galvanically isolated circuits: NO
• Operation without RC signal: YES
• Operation in uniLIGHTPLUS data mode: YES
• Effects with variable speed: 8 + 1 freely definable
