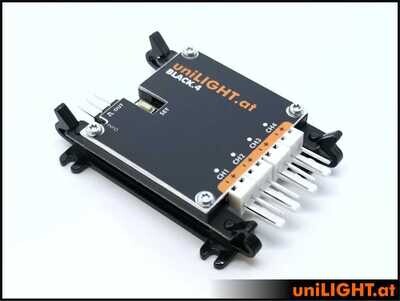

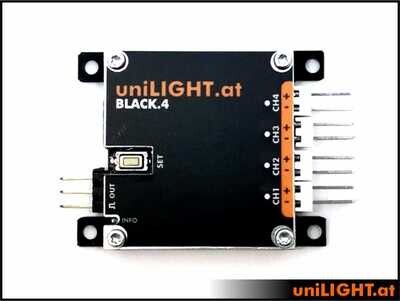

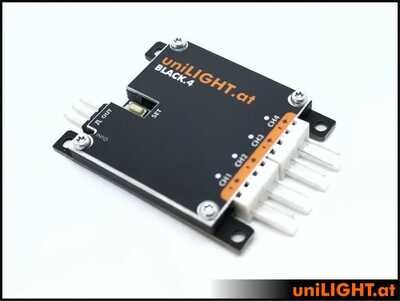

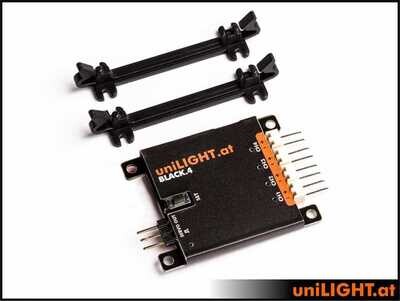

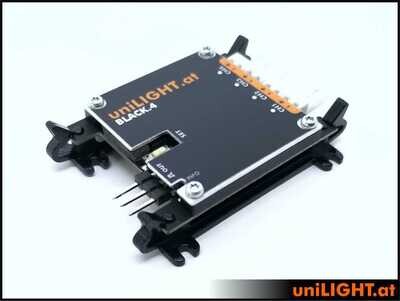

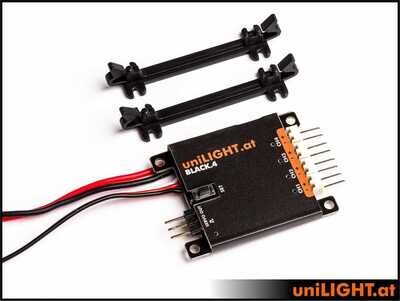

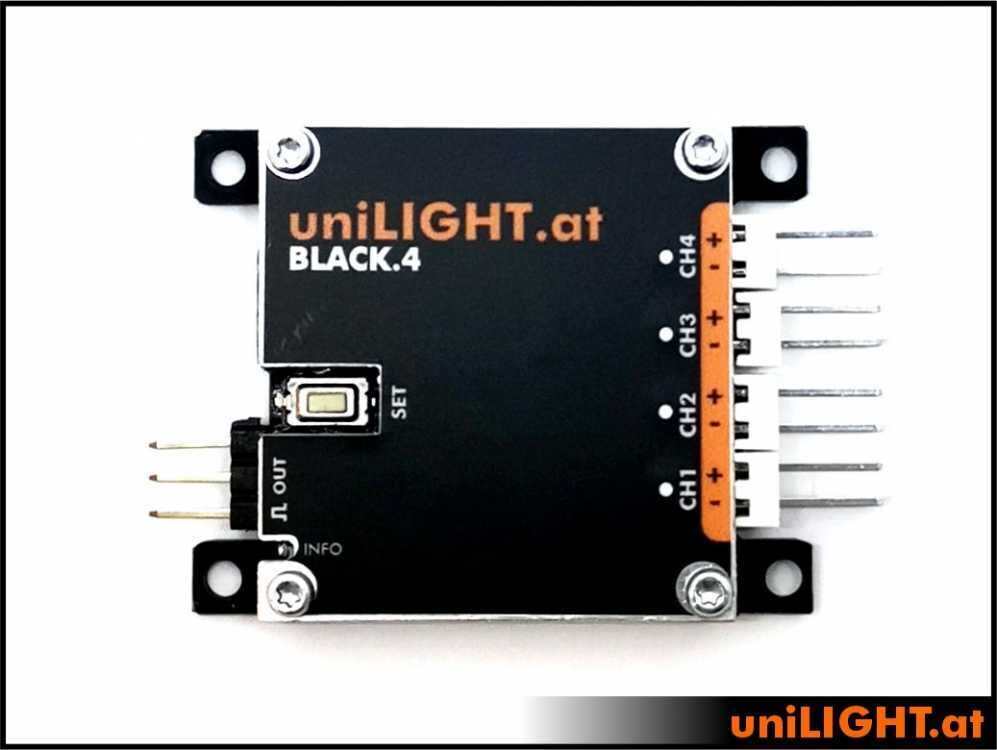

Latest-generation 4-channel controller: BLACK.4

Our Black.4 control unit is the new, streamlined standard controller for uniLIGHT lighting systems. It delivers fast and brilliant results for all model categories, but unlike its predecessor, it has been significantly improved in every respect. With its 4 control functions, it operates strobes, beacons/ACL, navigation/position lights, and spotlights via a single remote control channel, making it ideally suited for almost any model aircraft. As a new feature, 16 new special functions for night and show flights are also available.

New Features of the BLACK Series

Dynamics: more beautiful, faster, and sharper light effects

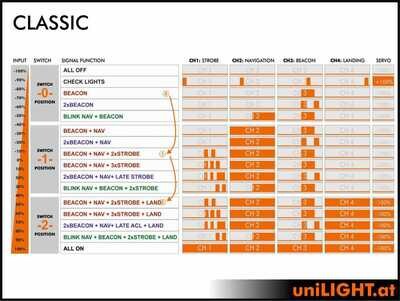

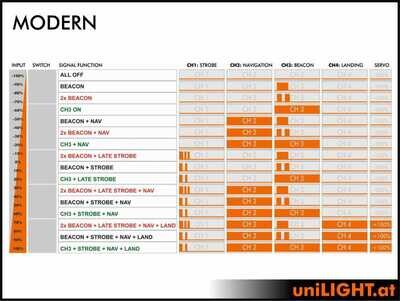

Variety: 3 times as many pre-programmed lighting schemes

Dimensions: reduced thickness and weight, reverse-polarity-protected connectors as outputs

Safety: Basic short-circuit protection with reactivation, reverse polarity protection

Performance: Up to 5 amps per channel continuous current, 8A total

Battery: Deep discharge protection for connected LiPo/LiIon

Master-slave principle: no switch required in the load circuit

Scale: Smooth switching transition programmable as a special function

Sport Navigation+Flash Special function for many sports applications

Future: New hardware platform enables updates and expansions

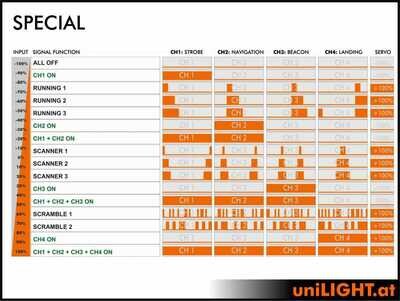

Special function

Slow switching operations Smooth switching transition to simulate incandescent bulb behavior or the simulation of a rotating beacon for slow-blinking functions.

Fast switching operations A base component with approximately 20% power is superimposed on the flash signal. This allows all high-intensity flash lights to now also be used as both a position light AND a flash light simultaneously. Optimal application for all sports models: one light, but two functions.

Technical Data:

Description:
