Technical Specifications:

• Receiver control voltage: 3.6–9.6 V
• Light side load: 6–14 V (depending on light)
• Dimensions/Weight: 45x24x5mm, 6g
• Current per channel/pulse current: 5 A up to 16 V, 8 A max
• Total load until shutdown: approx. 10 A
• Galvanically isolated circuits: YES
• Operation without RC: YES
• Effects with variable speed: Classic 14+2 / User-defined 2+1

Description:

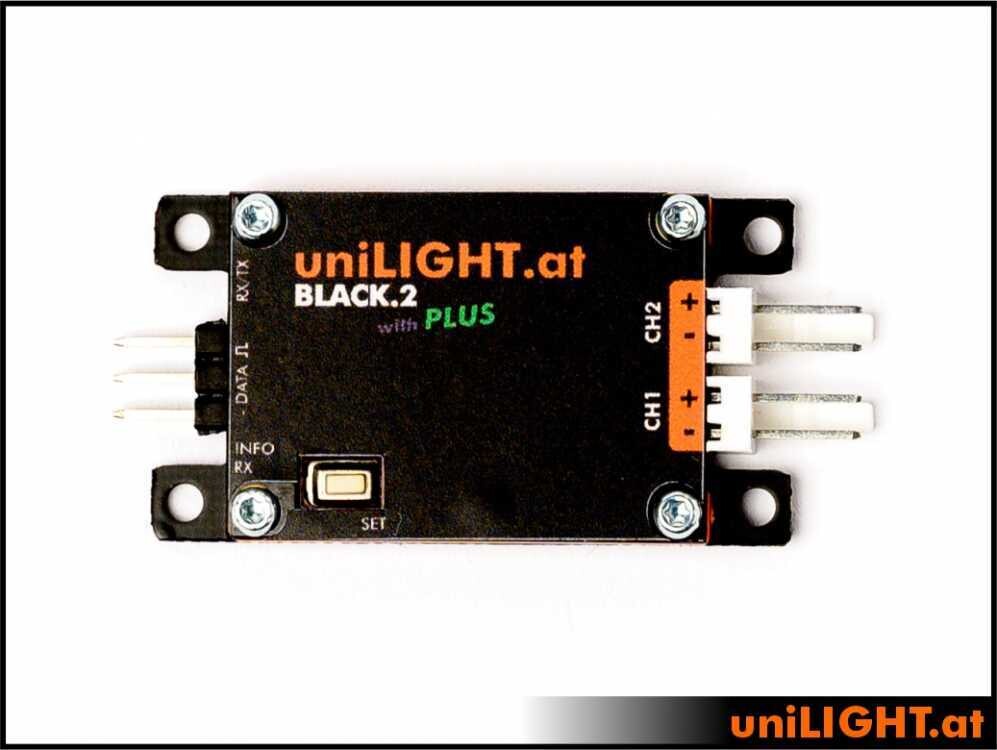

Our 2-channel Black.2+ module is the compact entry-level version of the uniLIGHT system, now featuring uniLIGHTPLUS. It is easy to use and delivers quick results for all model applications. The primary application involves using an ACL or BEACON light and switchable spotlights. In classic operating mode, fixed light patterns are pre-programmed and can be accessed as usual via the servo channel. However, using the MODUL-PLUS programming cable and the uniLIGHT.DESK, freely programmable light patterns can also be set.

New features of the PLUS series
Dynamics more beautiful, faster, and sharper light effects
Software compatible with uniLIGHT.DESK
Configuration freely definable lighting schemes and numerous settings
Safety basic short-circuit protection for the outputs, shutdown and automatic reactivation
Master-slave principle No switch required in the load circuit; activated only via remote
control Special functions Smooth switching transition and Navigation+Flash special function for many sports applications
