Technical Specifications:

• Receiver control side 4.8–9.6 V
• Approx. 1.5 g without cable
• Dimensions 45x14x6mm
• Light signals 5A to 16V (8A peak)
• Operation possible even without RC signal

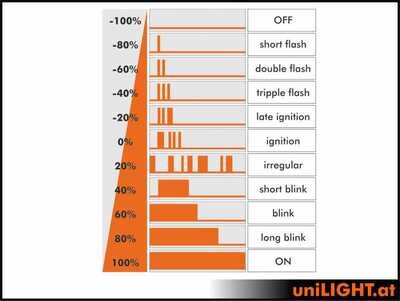

• 11 effects with variable speed
• Short-circuit protection
• Deep discharge protection
• Supplied with mounting clip, receiver connection cable, and instructions

Description:

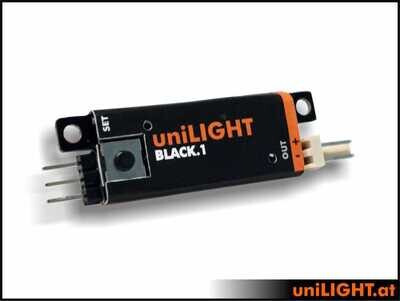

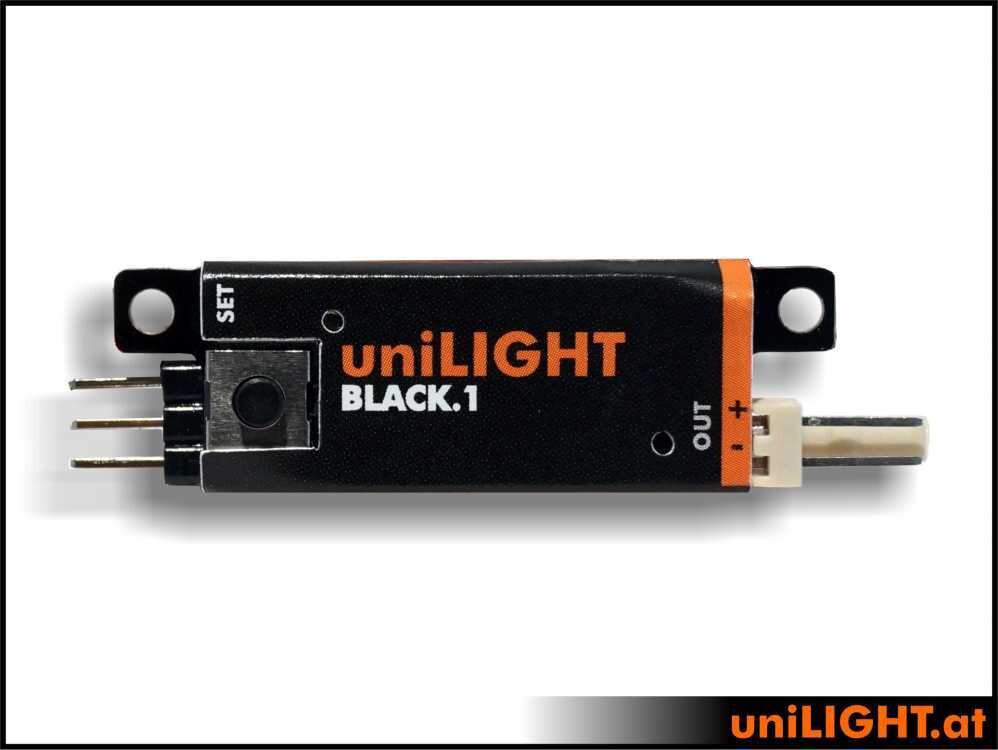

The solution for the simplest tasks in tight spaces and with minimal weight. The BLACK.1 controller is perfect for functional position lights, flashing lights, strobe/ACL lights, or spotlights on simple models. This generally works without a remote control channel, though one is available as an option. The BLACK.1 controller is simply connected to a 2S/3S battery. In programming mode, any light pattern can be set, which is then always executed. If a receiver is connected, the light pattern can also be selected via the transmitter.

Easy implementation of position lights on gliders and sport models, position lighting on multicopters, spotlights for position recognition on jets, … The B.1 controller can also be used as an expansion channel for other uniLIGHT controllers.

New features of the BLACK Series

• Dynamics: more beautiful, faster, and sharper light effects
• Dimensions: reduced size and weight, optimized for 2-channel applications
• Safety: Basic short-circuit protection for the outputs, shutdown, and automatic reactivation
• Battery: Deep discharge protection for connected LiPo
