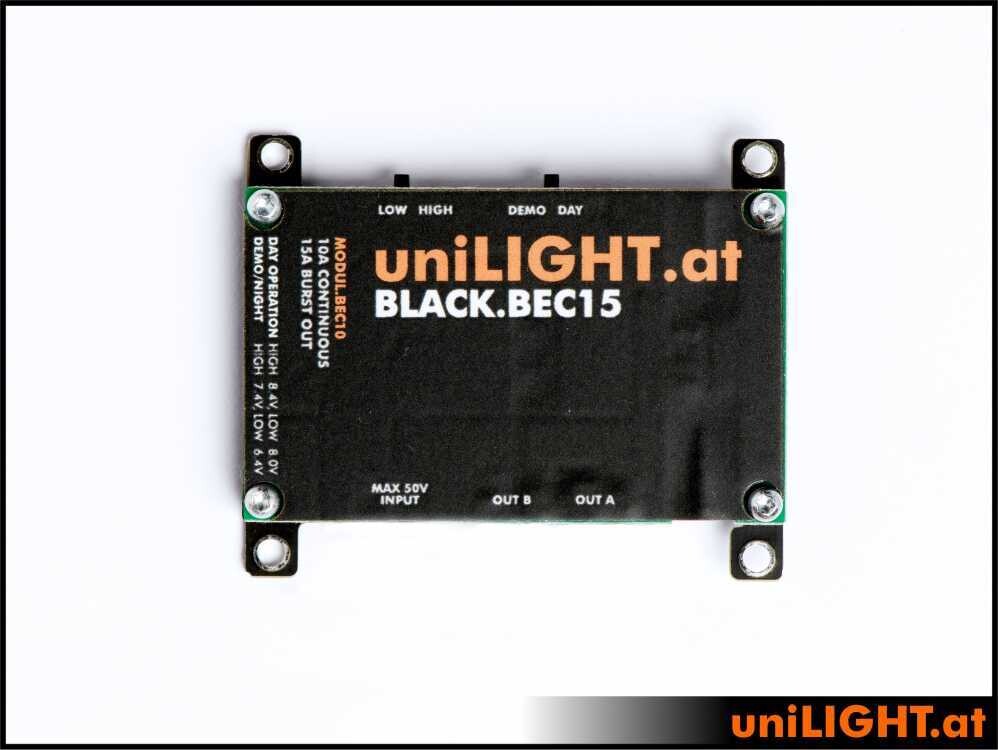

Our BEC module (Battery Elimination Circuit) was specifically designed for use with uniLIGHT.at lighting systems and offers high performance in a very compact design.

The module can generate the required constant voltage of 8V (equivalent to a 2S LiPo battery) directly from a drive battery (up to 50V). To do this, simply connect the power supply to the module; the lighting system can then be operated directly from the output. Thanks to the galvanic isolation of the uniLIGHT controllers, no interference can occur in the reception area. Very powerful lighting systems with up to 10A continuous current and 15A peak current can be operated.

Additionally, this BEC module offers further adjustment options via small switches on the side.

Switches between day mode (8V) and the significantly reduced night and demo mode (6.4V). Please
note that demo mode reduces brightness, but also prevents continuous operation. Please always monitor the operating temperatures.

Switch B HIGH/LOW
Switches between full power (8.4V/7.4V) and slightly reduced voltage (8.0V/6.4V) within the respective operating range.
Note that in the DAY+HIGH position, the lights are supplied with maximum operating voltage. They are at their brightest in this mode but also get correspondingly warm.

Technical Specifications:

• Input operating voltage: up to 50 VDC
• Constant output current: up to 10A
• Peak current: 15A
• Output voltages: 8.4V / 8.0V / 7.4V / 6.4V
• Weight (without cable): approx. 26g
• Dimensions: 34x54x10mm
• Included: JST BEC cable (M/F), mounting clips
