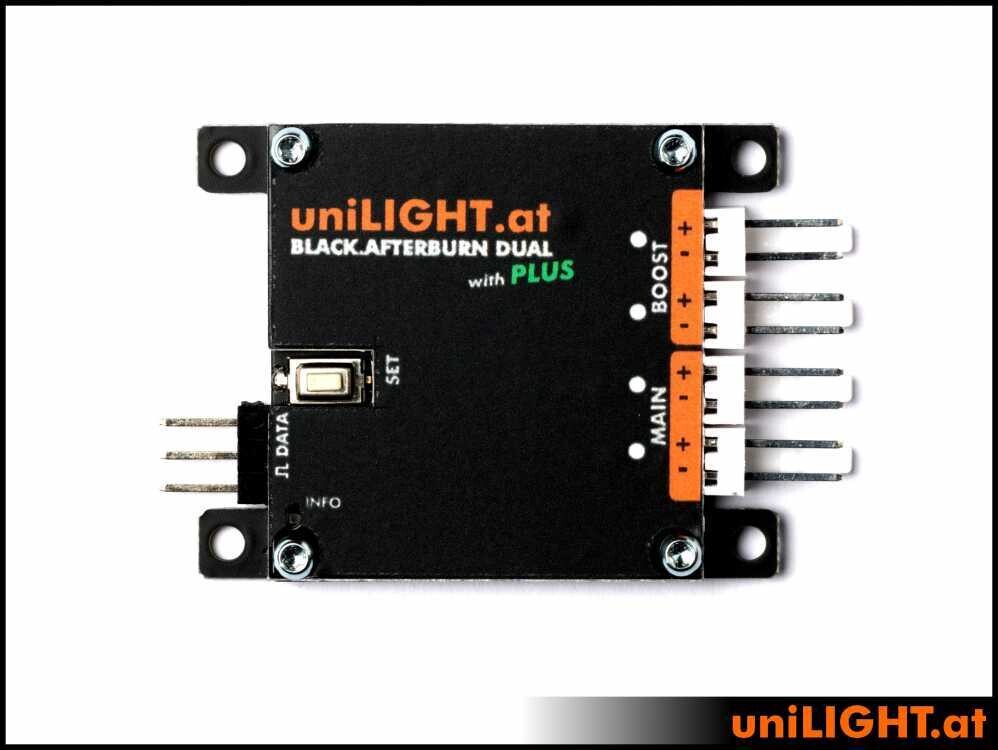

The BLACK.AB2PLUS afterburner controller supports up to two extremely powerful afterburner rings, suitable for twin-engine aircraft or as a dual ring for maximum light output. In addition to the typical “flickering” effect, the controller now also offers soft glow functions. As with all uniLIGHT controllers, control is achieved via the servo’s travel or portions thereof. However, switch-point operation is now also possible, allowing the connection to be made in parallel with the throttle channel.

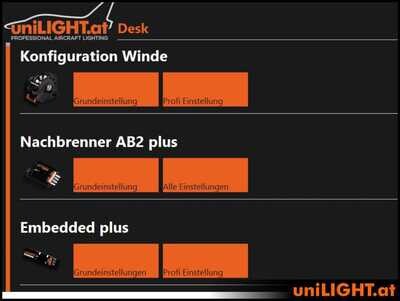

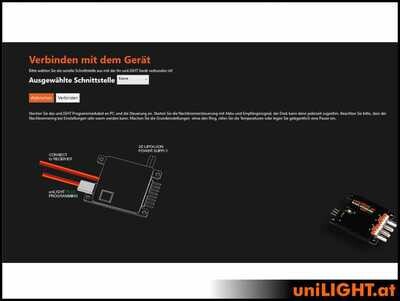

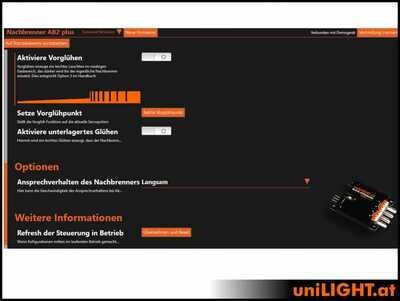

With the PLUS function, you can now conveniently select all settings and configurations yourself using our software (available on our homepage under the DOWNLOAD section).
All you need is our MODUL-PLUS (programming cable), and you’re ready to go.

Operating modes

• Random flickering effect or smooth glow effect
• Directly dependent on the servo input or in parallel operation with switching point

Options

• Fast or delayed response to the signal input
• Damped motion effect with soft flickering
• Pre-glow function below the main function
• Base level superimposed on the flickering signal

Technical Data:

• Receiver side: 3.6–9.6 V
• Weight: 9 g
• Dimensions: 50x35x6 mm
• Load per channel: 8 A, up to 16 V
• Total load: 12 A
• Electrically isolated system
• Deep discharge protection
• Servo output

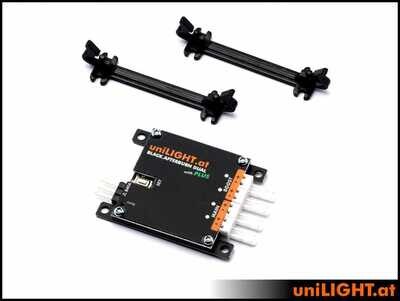

• Supplied with mounting clips and instructions
