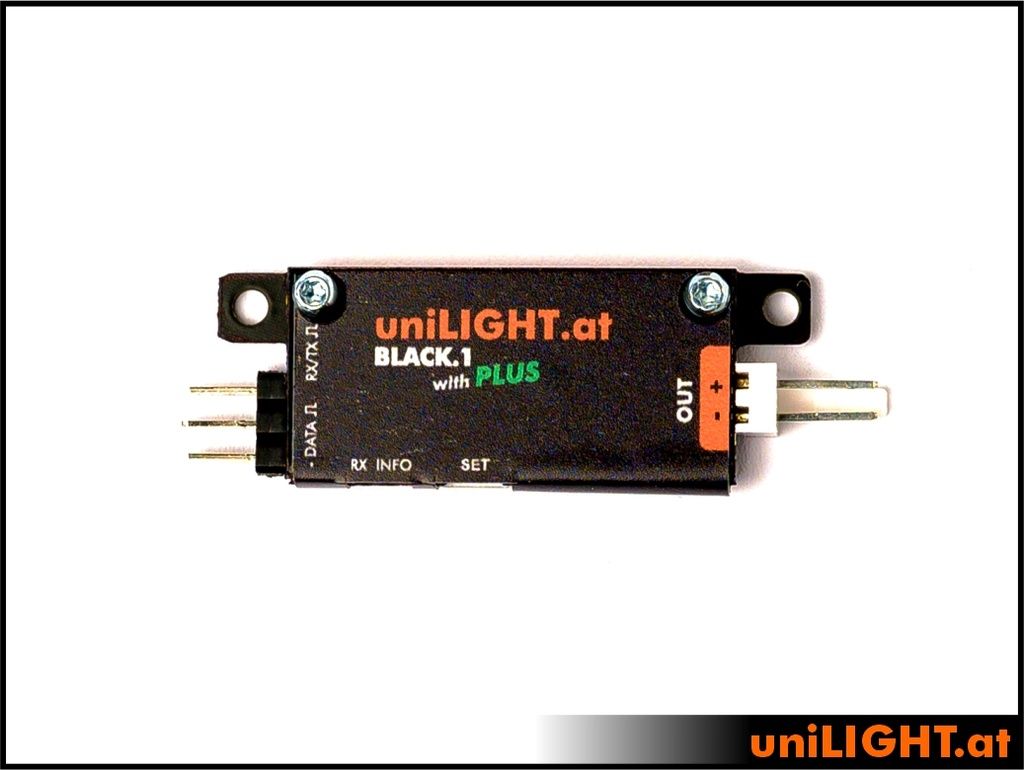

Next-generation lighting control: BLACK.1 PLUS
Our 1-channel Black.1+ control module is the compact entry-level version of the uniLIGHT system—now featuring the uniLIGHTPLUS interface and configuration via uniLIGHTDESK. It is easy to use and delivers fast results for all model ranges. However, its primary application is with ACL or BEACON lights, or even just with switchable spotlights.
New features of the PLUS series
Configuration: Classic operation and user-defined lighting patterns can be set
Software Compatible with uniLIGHTDESK
Dynamics: More beautiful, faster, and sharper light effects with 32-bit depth
Safety: Basic short-circuit protection for outputs; undervoltage and temperature protection available
Master-slave principle: No switch required in the load circuit; activated only via remote control
Special functions: Smooth switching transition, navigation + flash, sports mode, minimum and maximum levels
Control unit receiver 3.6–9.6 V, approx
. 6 g without cable,
dimensions 45 x 16 x
5 mm, light signals 1 channel with 6 A up to 16 V,
total load up to 10 A for short
periods, galvanically isolated system,
14+2 classic light schemes,
2+1 user-defined light schemes
Includes 1x mounting bracket and instructions
