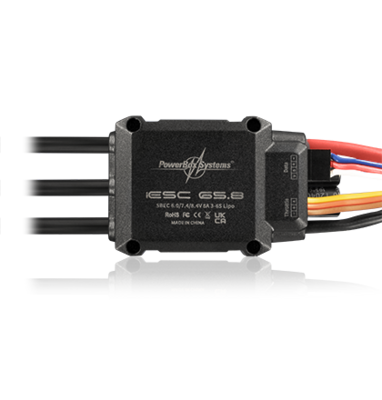

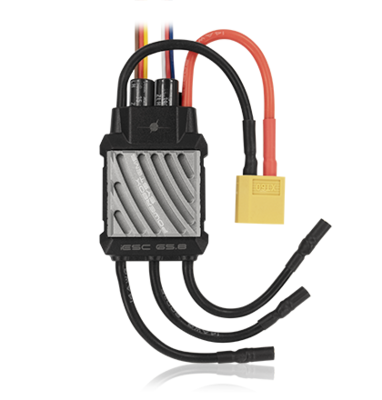

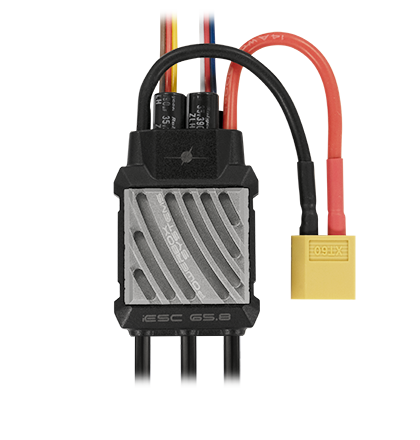

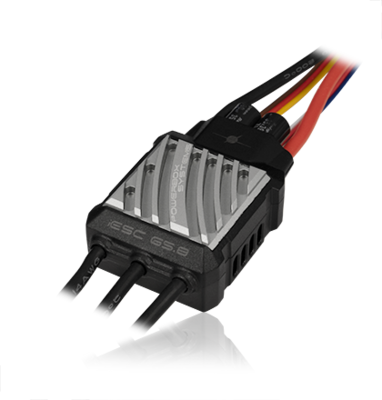

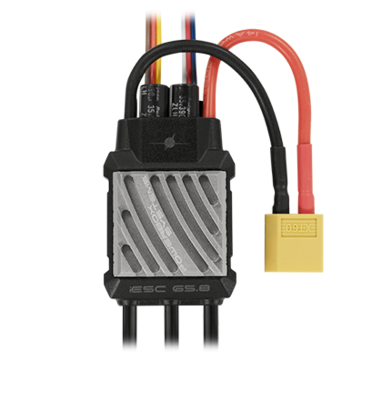

The iESC is based on the latest generation of controllers for brushless motors, featuring a 32-bit processor and advanced functions such as telemetry and the ability to adjust settings directly from the transmitter.

Features:

• High-performance brushless controller with 32-bit technology
• Latest generation of MOSFETs for lower power loss and maximum
  reliability
• Telemetry for PowerBox, Jeti, and Futaba transmitters
• Fixed-wing and helicopter modes
• Rotation direction, timing, battery type, freewheel, start-up current, and other
  parameters adjustable
• Adjustable control parameters in helicopter mode
• Adjustable parameters directly on the transmitter for PowerBox and Jeti
• Parameters adjustable via LCD programmer for all systems
• 8A BEC
• Self-test upon power-up checks motor, throttle position, and voltage
• Optimal cooling thanks to sophisticated housing design

Technical Specifications:

Product description:

The iESC is based on the latest generation of controllers for brushless motors, featuring a 32-bit processor and advanced functions such as telemetry and direct adjustment from the transmitter.

The powerful microprocessor ensures smooth motor operation for brushless motors with up to 40 poles.

Braking force, motor timing, rotation direction, BEC output voltage, freewheel, Heli Mode, and much more can be adjusted directly via the PowerBox or Jeti transmitter. Adjustment boxes or jumper cards are now a thing of the past.

The iESC provides extensive telemetry data for PowerBox, Jeti, and Futaba transmitters, such as battery voltage, current, capacity used, RPM, and ESC temperature. A powerful 8A BEC, which supplies power to the receiver via two 0.5mm² patch wires, rounds out the feature set.
