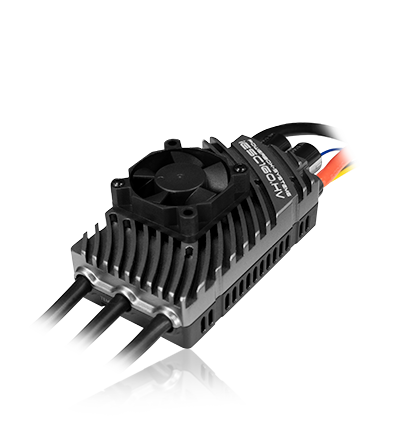

The iESC series is the latest generation of controllers for brushless motors, featuring a 32-bit processor. Telemetry and the ability to adjust settings via the transmitter are standard features.

Features

• High-performance brushless controller with 32-bit technology
• Latest generation of MOSFETs for lower power loss and maximum
• reliability
• Telemetry for PowerBox, Jeti, and Futaba transmitters
• Fixed-wing and helicopter modes
• Rotation direction, timing, battery type, freewheel, start-up current, and other
• parameters
• Adjustable control parameters in helicopter mode
• Adjustable parameters directly on the transmitter for PowerBox and Jeti
• Parameters adjustable via LCD programmer for all systems
• Integrated electronic anti-flash circuit
• HV Opto version
• Self-test upon power-up checks motor, throttle position, and voltage
• Optimal cooling thanks to sophisticated housing design

Technical Specifications

• Operating voltage 6s - 14s
• Current capacity 160A / 180A continuous/peak
• Output voltage 6.0V/7.4V/8.4V
• Signal input PWM
• Supported remote control systems: PowerBox, Jeti, Futaba, others without telemetry
• Supported telemetry systems: P²-BUS, EX-BUS, S.BUS2
• Dimensions 97 x 51 x 34 mm
• Weight 199g
• Temperature range -20°C to +85°C

The iESC is based on the latest generation of controllers for brushless motors, featuring a 32-bit processor and advanced functions such as telemetry and direct adjustment from the transmitter. The powerful microprocessor ensures smooth operation for brushless motors with up to 40 poles.

Braking force, motor timing, rotation direction, gear ratio, freewheel, helicopter mode, and much more can be set directly via the PowerBox or Jeti transmitter. Setting boxes or jumper cards are now a thing of the past.

The iESC provides extensive telemetry data for PowerBox, Jeti, and Futaba transmitters, such as battery voltage, current, capacity used, RPM, and ESC temperature.

The designation HV stands for High-Voltage; the iESC HV supports up to 14S batteries and is available in an Opto version.
