Data Sheet:

• Dimensions: 84 mm x 49 mm x 11.5 mm
• Weight (g): 40

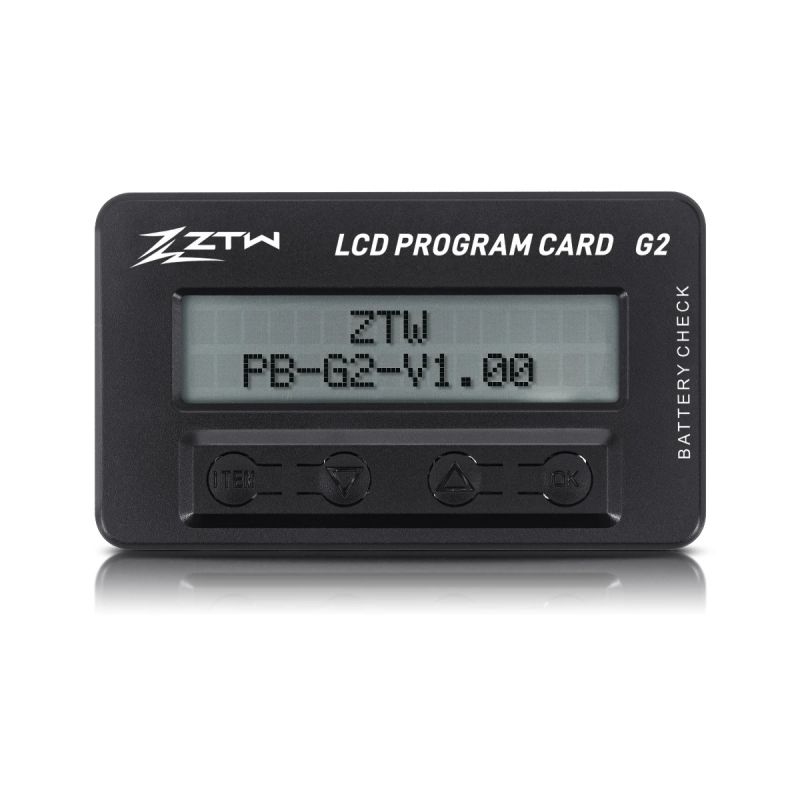

ZTW Multifunctional LCD Program Box G2 for Beatles / Shark / Mantis / Mantis Slim G2 Series ESC, LiPo Battery Voltmeter, Servo Tester

With the ZTW Beatles G2 programming box, you can quickly and easily adjust the settings of your ZTW Beatles G2, Mantis G2, Skyhawk, Shark G2, Seal G2, and Dolphin ESCs.

Important: This device cannot be used with older ZTW ESCs without G2 marking.

Follow the simple instructions and program your ESCs in seconds.

Features:

• Functions as a standalone device for setting ESC parameters
• Functions as a LiPo battery voltmeter to measure the voltage of the entire battery pack and each individual cell
• For the ZTW ESC with data feedback function: Ability to display real-time data such as voltage, current, input signal, output signal, RPM, battery power, MOS temperature, and motor temperature
• For the ZTW ESC with data logging function, the ability to read data including maximum RPM, minimum voltage, maximum current, external temperature, and maximum temperature
• Detection of the PWM throttle signal
• ESC/Servo Tester
• The LCD display can be updated via the ZTW Bluetooth module using the mobile app

Specifications:

• Input power source: DC 5.0V–12.6V
• Weight: 40g
• Dimensions: 84mm x 49mm x 11.5mm

Contents:

• ZTW Beatles G2 Programming Box
• Manual in English
