Data Sheet:

• Dimensions: 48 mm x 80 mm x 21 mm
• Weight (g): 142 g
• Maximum current (A): 130A
• Battery cells: 6S - 22.2V, 7S - 21.77V, 8S - 29.6V, 9S - 33.3V, 10S - 37V, 12S - 44.4V, 14S - 51.8V
• Connection: Supplied without plug
• Battery cell compatibility: 8-38 NiCd / 6-12 LiPo

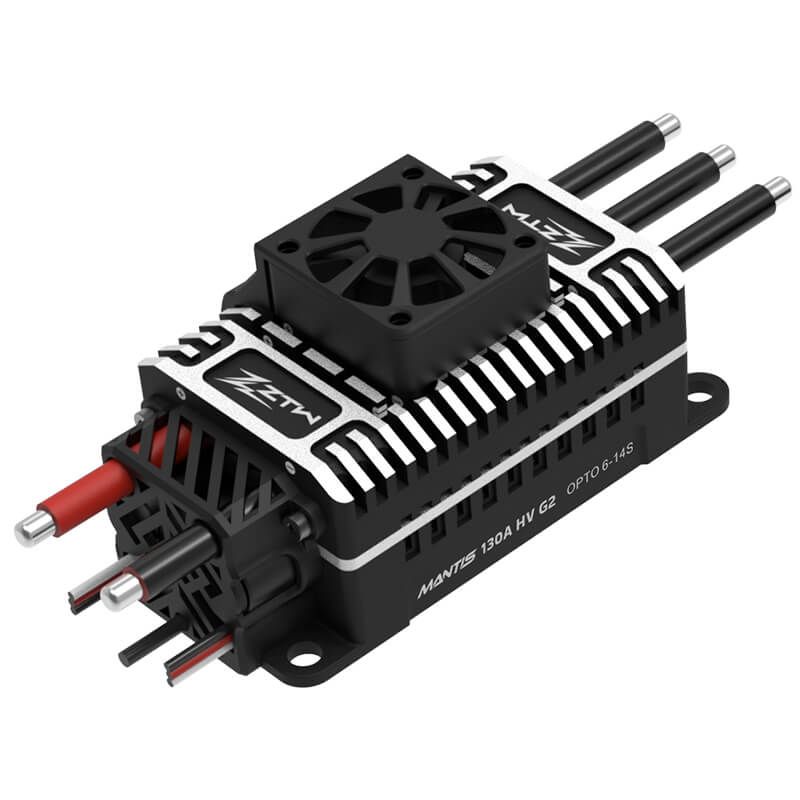

NEW 32-bit ZTW Mantis G2 130A HV ESC 6-14S OPTO for RC airplanes and helicopters.

The holes on both sides of the ESC and the unique structure of the fan guard improve heat dissipation. The special fan guard directs airflow from the fan into the interior of the ESC, which improves internal air circulation and dissipates more heat from the ESC. This significantly improves the ESC’s heat dissipation, allowing the ESC to operate more stably and run cooler in various harsh environments.

Through the use of imported IC components and advanced PCB manufacturing, the ESC features low heat generation and high current endurance, making it more reliable and stable.

With the new, unique circuit design and improved algorithm, equipped with a powerful 32-bit microprocessor, computing power is significantly improved, making the ESC respond even faster.

The new ESC supports motor rotation reversal.

Synchronous rectification significantly reduces ESC heating, making the ESC more energy-efficient and reliable.

Supports real-time data transmission: current, voltage, temperature, RPM, throttle, and ESC status. And you can check the data in real time using the app.

The ESC features a separate programming interface for connecting to an LCD programming board or an app adapter for parameter adjustment, making it easier and more convenient.

Features:

• Super smooth and precise throttle response
• Higher driving efficiency and greater energy savings
• Two modes: normal and smooth acceleration
• Multiple protection functions: startup, overheating, undervoltage shutdown, overload, overcurrent, and signal loss.
• Reliable thermal overload protection
• Automatic throttle cutoff in case of signal loss
• Overheating protection: If the ESC temperature exceeds 110 degrees Celsius, the ESC will reduce output power to allow it to cool down.
• Signal loss protection: The ESC automatically cuts off power to the motor if it detects a loss of throttle signal for 2 seconds.
• Supports high-RPM motors and is compatible with most motors on the market.

Specifications:

• Continuous current: 130A
• Burst current: 150A
• Battery: 6-14S LiPo
• BEC output: No BEC. OPTO.
• Dimensions: 78mm x 45mm x 32mm
• Weight: 180g

Programming:

• Performed via the transmitter
• 4 different braking modes
• Battery types: NiCd/NiMH/LiPo/LiFe
• Low-voltage cut-off
• Low-voltage protection: 2.8–3.2 V
• Governor mode
• Frequency: 8 or 12 kHz
• LiPo: 6 to 14S or Auto
• Motor control: 0 to 30°

Download:

ZTW Mantis Manual EN
