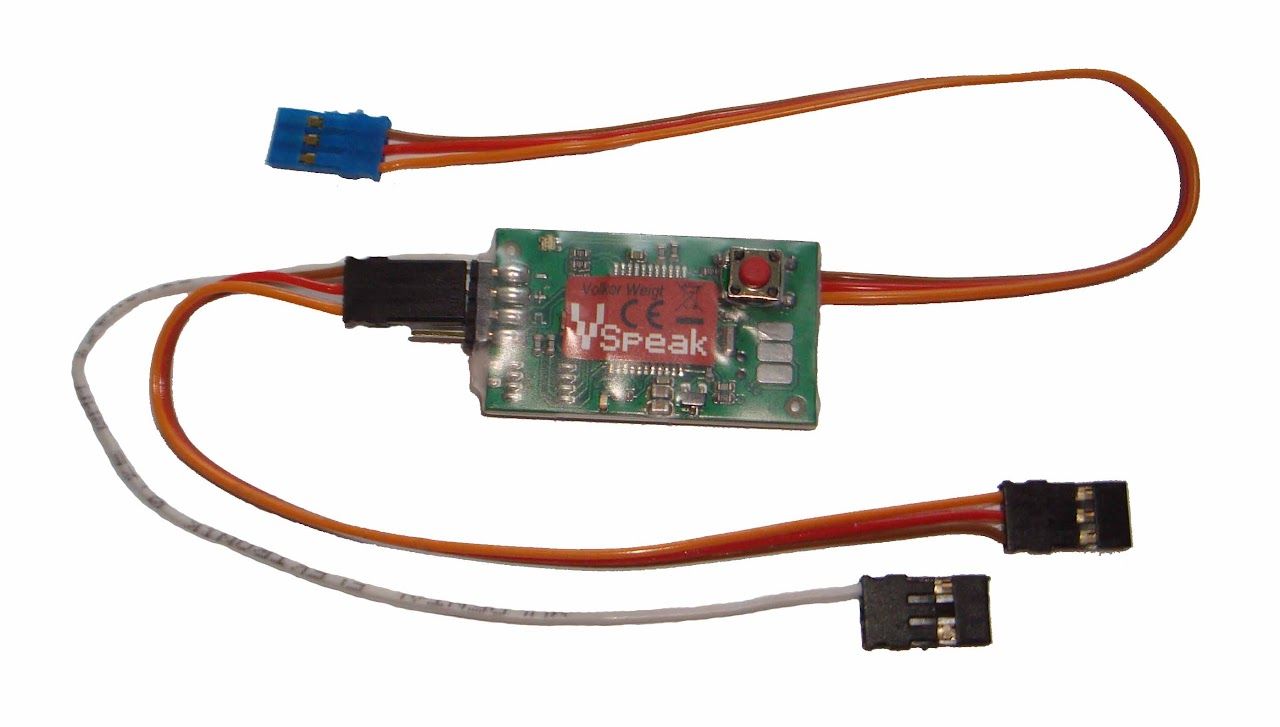

The VSpeak ECU converter is compatible with the new Swiwin ECUs (V3).

The VSpeak ECU converter is connected to the ECU using the 3-pin blue UNI servo plug, plugged into the port labeled TELEMETRY.

The ECU data can be transmitted to the transmitter via the telemetry return channel using the ECU converter.

The ECU converter calculates fuel consumption and also transmits this data to the model pilot’s respective transmitter.

Additionally, the taxi tank function is adjustable.

The VSpeak ECU Converter is compatible with the following radio control systems:

• • PowerBox Core P²-Bus
  • Jeti Duplex (EX-Sensor / EX-Bus)
  • Multiplex MLink (MSB)
  • Graupner HoTT
  • Futaba
  • FrSky S.Port
  • JR PROPO
  • Spektrum X-Bus / SRXL2

The respective remote control system can be configured using the button on the ECU converter.

For the Jeti Duplex, PowerBox, and Graupner HoTT remote control systems, all converter settings can be adjusted directly from the transmitter; for all other systems, individual parameters can be set using a microSD card.

Detailed information on the VSpeak ECU telemetry adapter can be found in the comprehensive manual.
