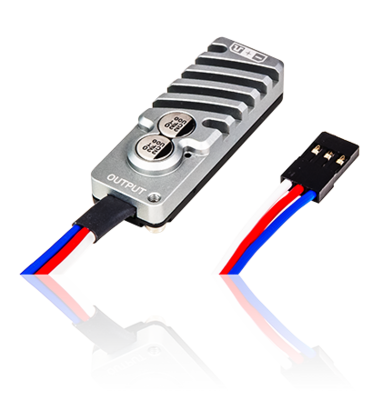

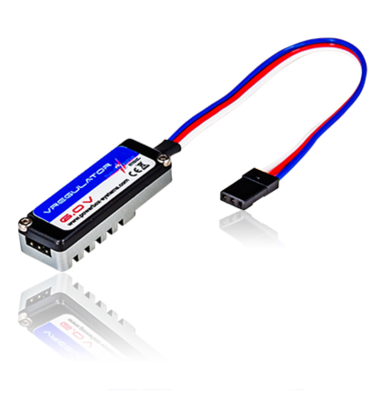

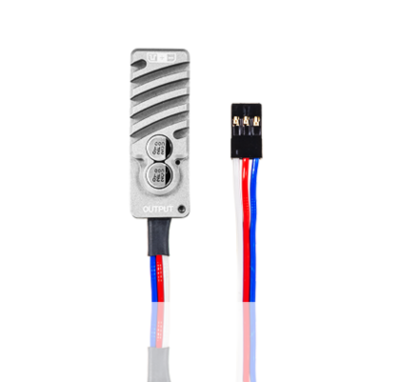

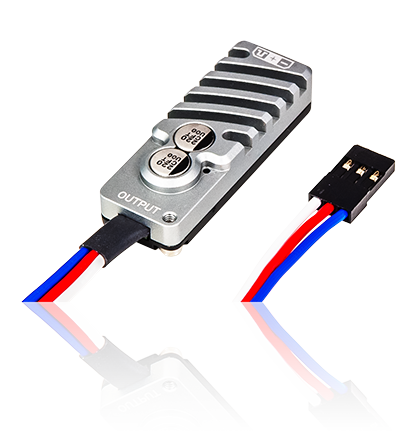

The V-Regulator is a compact, high-performance voltage regulator designed for use whenever standard servos are to be powered by a lithium-ion battery.

Features

• Available with a regulated output voltage of 5.3V or 6.0V
• Continuous current up to 3A—depending on cooling
• Peak current up to 20A (< 10s)
• Large-surface-area milled aluminum heat sink
• Excellent for ignitions, small helicopters, and smaller models with up to 8 servos
• For all applications that may be operated at a maximum voltage of 5.3V or 6.0V
• Extremely slim design for small fuselages

Product Description

The V-Regulator is a compact, high-performance voltage regulator designed for use whenever standard servos are to be powered by a lithium-ion battery. This allows small to medium-sized fixed-wing models and helicopters to be equipped or retrofitted with modern battery technology.

The pulse signal is passed through from the input to the output, allowing even a single 6V servo to be operated in a model with a high-voltage system.

Another application is electronic ignitions with a limited maximum supply voltage.
The regulated output voltage ensures consistent servo performance. Servo back currents are effectively filtered out.

Technical Data
