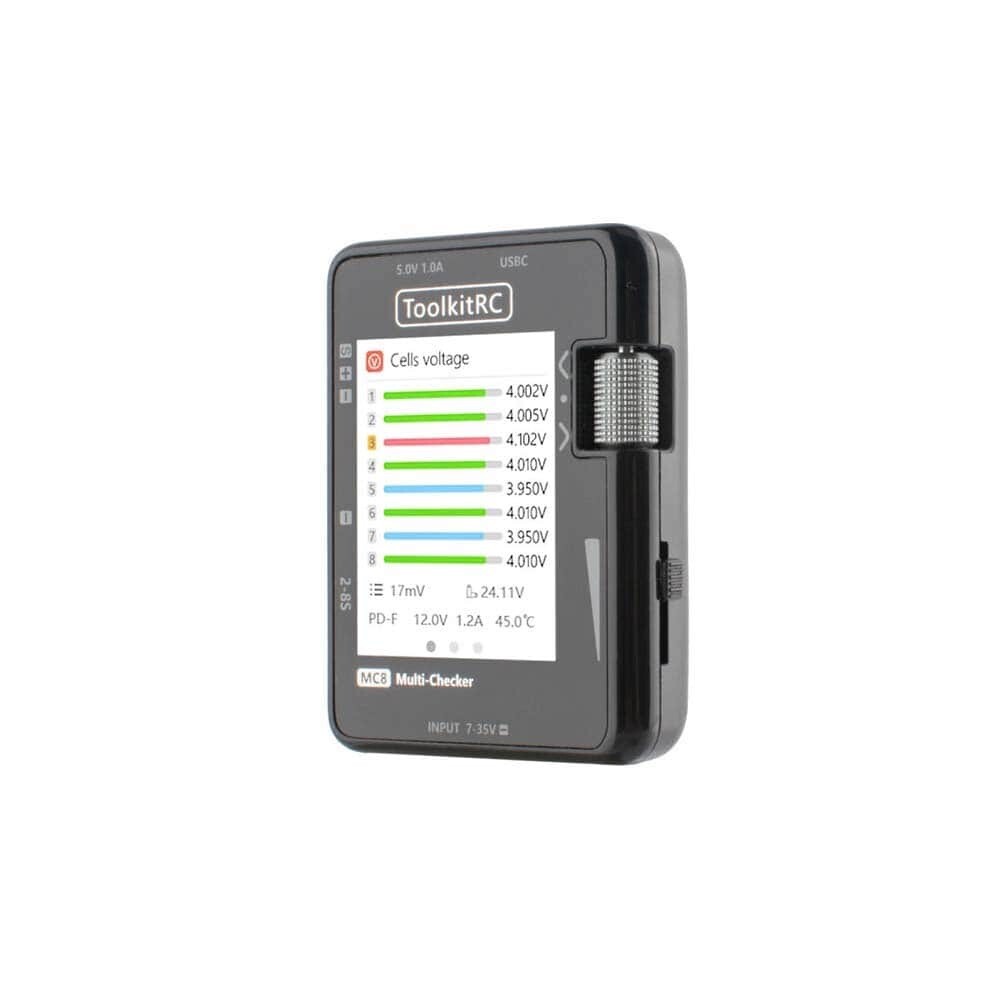

The MC8 from Toolkit is a versatile cell tester with a large, bright, and easy-to-read display. Not only can you check cell voltages and balance your batteries, but you can also monitor the PWM/PPM/SBUS output of receivers, generate PWM output to test servos and ESCs, and use your LiPos to charge USB devices (up to 20 W)!

Features

• Large color screen
• Battery status display - Cell voltage tester, supports 1S to 8S batteries
• Receiver signal display: PWM, PPM & SBUS shows you the value of each channel
• PWM, PPM, and SBUS signal generator output for controlling servos and ESCs
• High-precision LiPo battery cell balancing: 0.005V / 60mA
• USB-C 20W fast charging for phones and tablets, etc. (supports PD3.0, QC3.0, AFC, SCP, FCP protocols, etc.)
• USB-A 5V 1A output
• Intuitive control

Technical Specifications

• LCD: 2" IPS 320x240
• Dimensions: 68x50x15mm
• Weight: 50g

Tester:

• Main input connector: XT60 7.0–35.0V
• Balance input: 0.5V–5.0V Lixx 2–8S
• Signal input: <6.0V
• Balance current: MAX 60mA @2-8S
• Balancer accuracy: <0.005V @ 4.2V
• USB-A output: 5.0V@1.0A firmware upgrade
• USB-C output: 5.0V–12.0V @MAX 20W
• USB-C protocol: PD3.0 QC3.0 AFC SCP FCP

Meter:

• PWM: 880–2200us @20–400Hz
• PPM: 880–2200 μs*8CH @20–50 Hz
• SBUS: 880–2200 μs*16CH @20–100 Hz

Output:

• PWM: 1000–2000 μs @20–1000 Hz
• PPM: 880–2200 μs*8CH @20–50 Hz
• SBUS: 880–2200 μs × 16 ch @ 20–100 Hz
