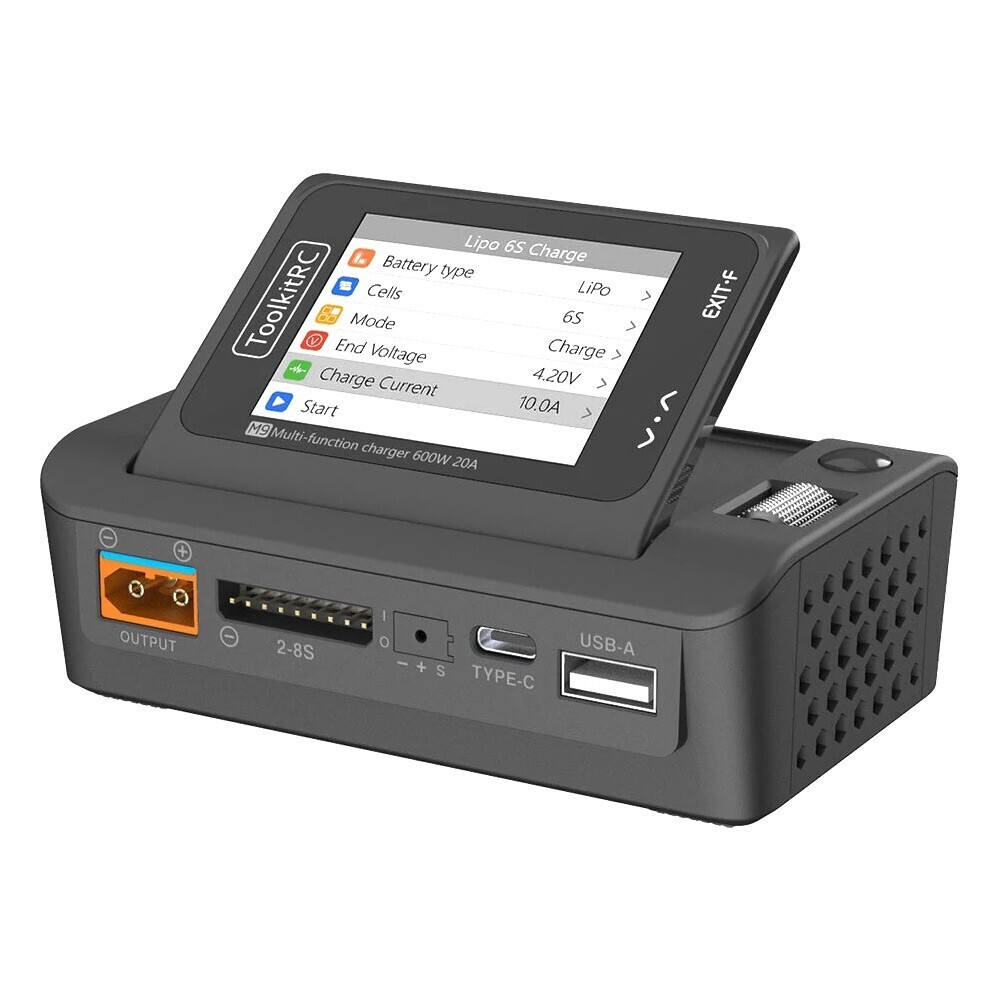

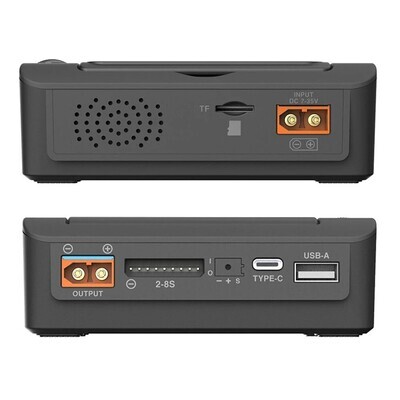

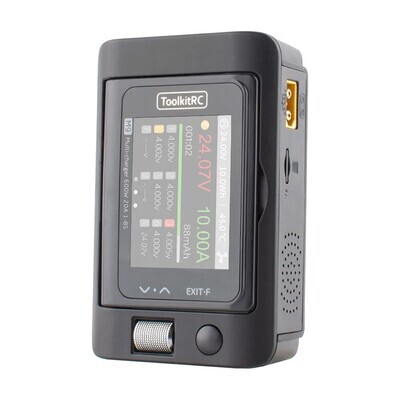

The highly acclaimed ToolkitRC M9 is a multifunctional balance charger with all-in-one features. This device offers 600 watts of power, dual USB fast charging with a maximum 65 W USB-C/USB-A output, an IPS wide-angle color display, and support for LiPo batteries up to 8S!

Technical Specifications:

• Input voltage: 7-35V / MAX 25A
• Battery Type: LiPo, LiHv, LiFe, Lion, LTO - 1-8S // NiMH - 1-20S // Pb 1-10S
• Charging power: 0.1–20A 600W
• Discharge power: 0.1–20A 600W Recycle External // 0.1–3A 20W Normal mode
• Trim current: 1000mA 4.2V
• USB A+C Output: 5.20V 65W PD / QC / PPS / AFC / SCP
• PWM: 880us–2200us 20–400Hz
• PPM: 880us-2200us 8CH 20-50Hz
• SBUS: 880us-2200us 16CH 20-100Hz
• Voltage: 1.0V–5.0V 1–8S
• Internal resistance: 1–99 mΩ 1–8S
• ESC: 1–20 A, 1–35 V, MAX 600 W

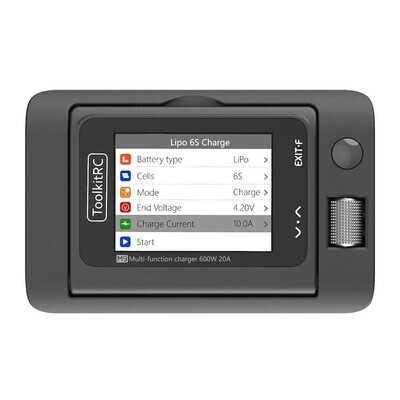

• LCD display: 2.4"

Specifications

USB A+C Output: 5-20V@65W PD QC PPS AFC SCP
Power Supply: 1.0-20A@1-35V Mode: CC+CV
Measuring Device:
SBUS: 880-2200us*16CH @20-100Hz
PPM: 880-2200us*8CH @20-50Hz
PWM: 880-2200us @20-400Hz
Battery Type: LiPo LiHV LiFe Lion LTO@1-8S
Output:
SBUS: 880-2200us*16CH @74Hz
PWM: 500-2500us @20-1000Hz
PPM: 880-2200us*8CH @50Hz
Discharge power:
0.1-20A@600W External
recharge 0.1-3A@20W Normal mode
Charging power: 0.1-20A@600W
LCD: 2.4*IPS RGB 320*240 pixels
Balance current: 1000mA@4.2V
ESC: 1-20A@1-35V MAX 600W
NiMH @1-20S Pb @1-10S
Voltage: 1.0V–5.0V@1–6S
Input: 7–35V@MAX35A

Manuals

• ToolKitRC M9

Downloads

• Firmware
• Sounds
