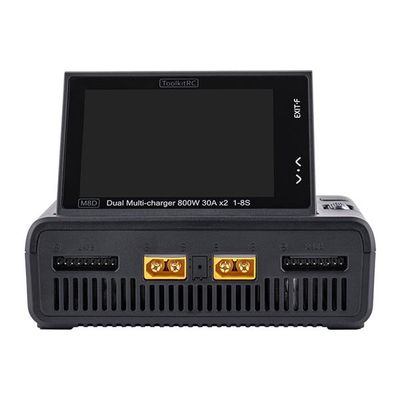

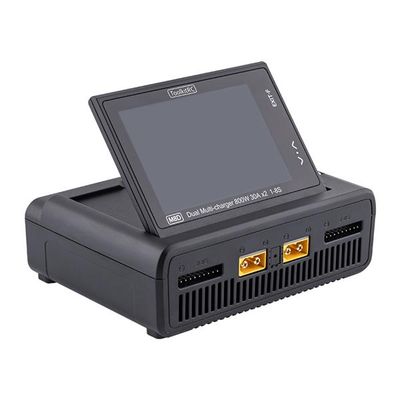

The M8D charger with a flip-up touchscreen is a powerful and compact 2-channel charger designed for lithium batteries up to 8S, among other applications. With a total output of 1600W and a robust 50A charging current in synchronized mode, it ensures that batteries are reliably supplied with the power they need. In addition, it features a 65W fast-charging function that delivers results in no time.

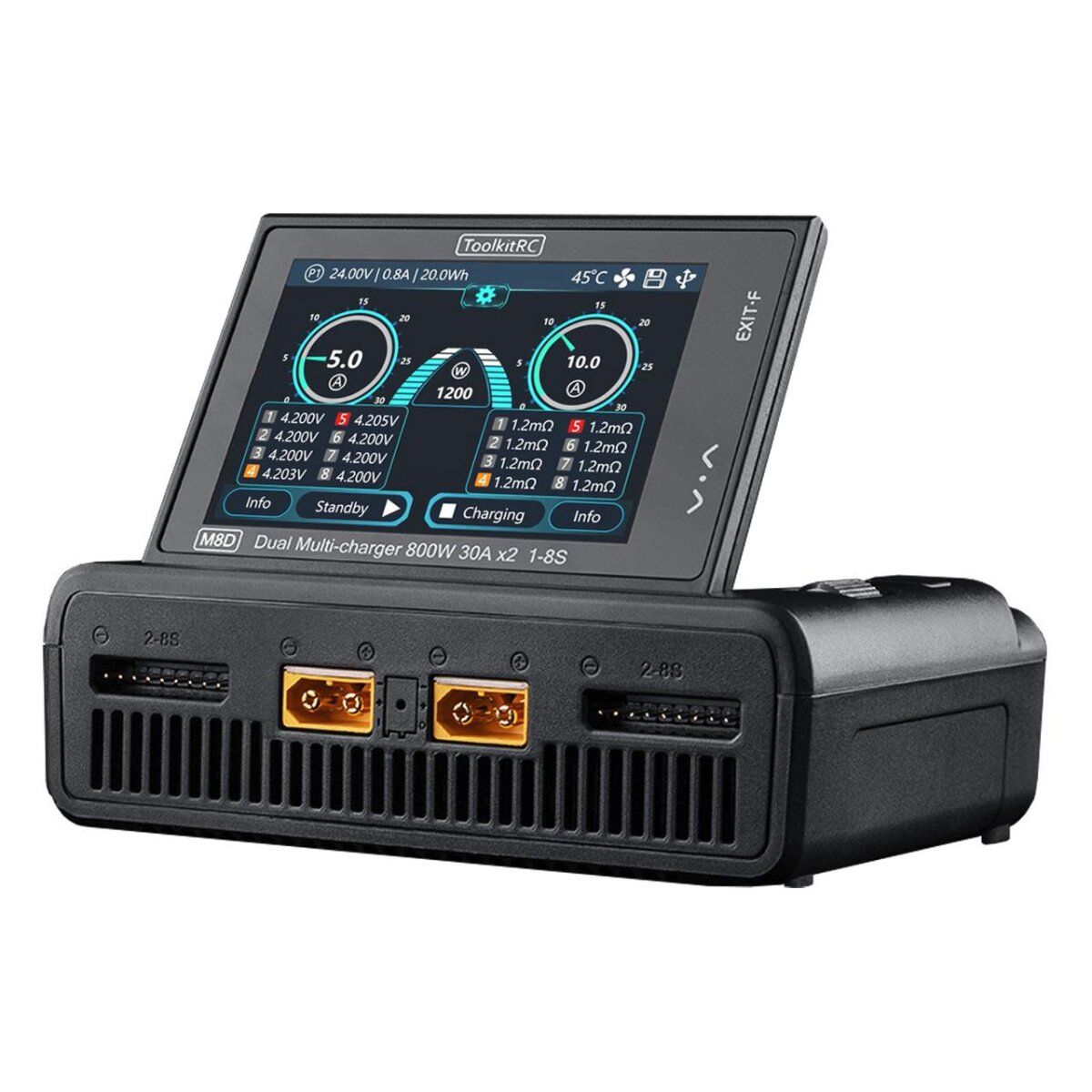

The new UI design, used for the first time in the M8D and modeled after the user interfaces of real cars, makes operation via the touchscreen as simple and intuitive as possible. In the settings menu, for example, you’ll find mostly sliders and on/off switches, while charging can be controlled via buttons on the main screen. The display itself is optimized to clearly present the most important information from both channels. In addition to the appealing UI design, the battery destruction function is also new. This function ensures that used batteries can be safely disposed of in compliance with regulations at the end of the process.
Features:
Technical Specifications:
| Input voltage: | DC 10–49 V, max. 60 A |
| Charging current: | max. 30A, 800W x2 (asynchronous mode) max. 50A, 1600W x2 (synchronous mode) |
| Discharge current: | max. 30A, 800W (Recycle mode) max. 10A, 40W (Normal mode) |
| Charging accuracy: | - |
| USB: | 5–20V at 65W or higher PD QC PPS AFC FCP SCP PE SFCP |
| Balancing current: | 2000mA, 4.2V |
| Number of cells: LiPo/LiFe/LiIon/LiHV/LTO | 1–8S |
| Number of cells: NiMH | 1-20S |
| Pb battery voltage: | 1-15S |
| Voltage: | - |

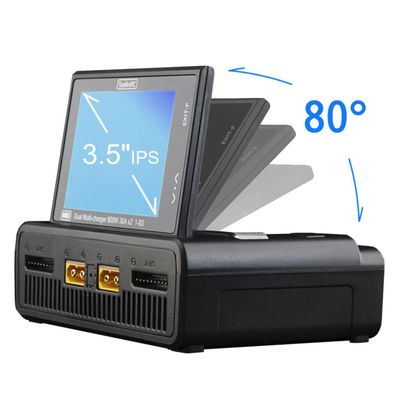

| Display: | IPS 3.5'', 480x320px touchscreen LCD |

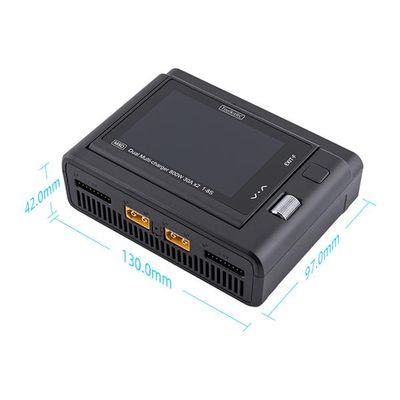

| Dimensions: | 140 x 110 x 50 mm |
| Weight: | 450g |
Included:
