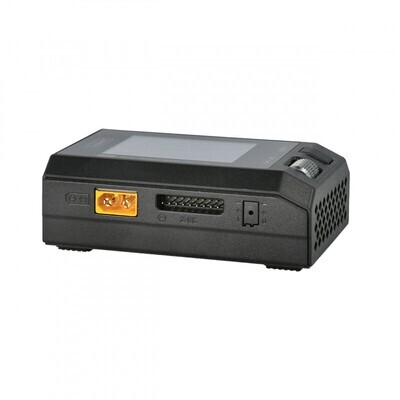

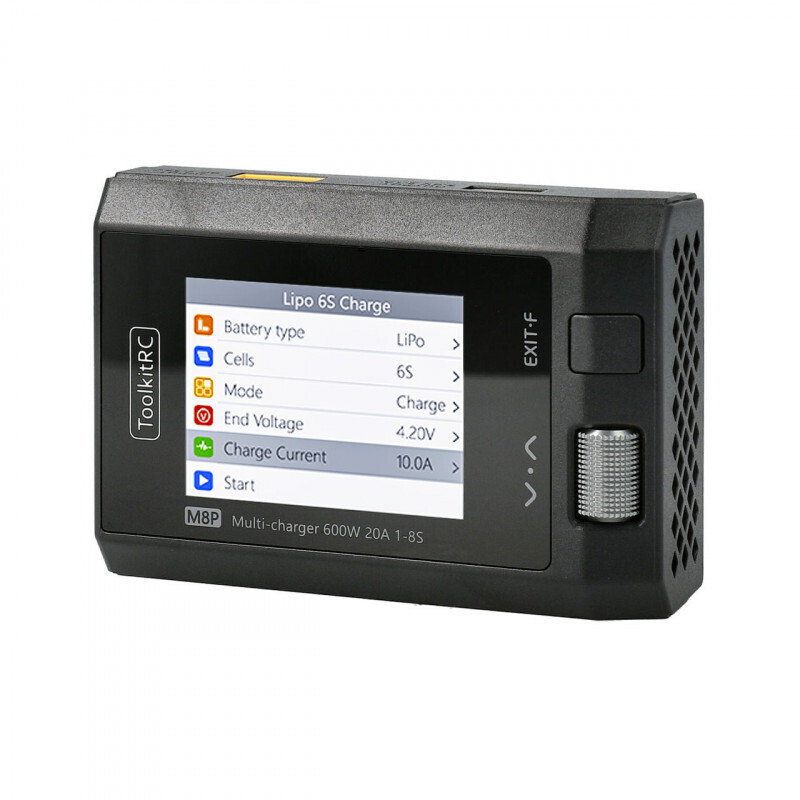

The M8P charger, with its IPS wide-angle color display, is a true multifunctional device. In addition to the standard functions of charging and discharging, it can also be used for power measurement and signal testing. It can even be used as a charger for drones and fits comfortably in any pants or jacket pocket.

Features:

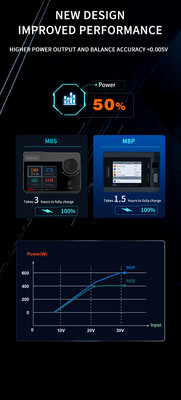

• Charging power up to 600 W and max. charging current of 20 A.
• Discharge power: max. 600 W.
• Multifunctional device
• Charger for batteries and drones
• Measuring device for resistance and PWM/PPM/SBUS signals.
• Testing of PWM/PPM/SBUS signals
• Multilingual user interface with voice output
• Update options via USB
• Various safety commands

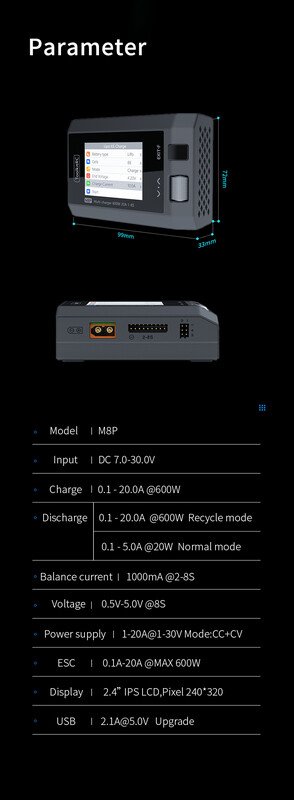

Technical specifications:

• Input voltage: DC 7–35 V, max. 25 A.
• Charging power: 0.1–20 A, 600 W.
• Discharge power: 0.1–20 A, 600 W (recording/extension mode).
• 0.1–3 A, 20 W (internal mode).
• Charging accuracy: <0.005V.
• USB A: 2.1A, 5V (or upgrade).
• Balance current: 1000 mA, 4.2 V
• Cells LiPo/LiFe/LiIon/LiHV 1–8S
• Batteries: NiMH/NiCd 1-20S
• Lead-acid battery voltage: 1-10S
• Voltage: 1.0V–5.0V, 1–6S

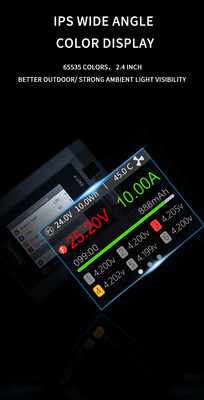

• Screen: 2.4'' IPS 320x240px LCD.
• Dimensions: 99x72x35mm
• Weight: 180g

Measurements and outputs:

• PWM measurement 880us–2200us, 20–400Hz.
• PPM 880us–2200us x8 CH, 20–50 Hz.
• SBUS 880us–2200us x16 CH, 20–100 Hz.
• PWM output 500us–2500us, 20–1000Hz.
• PPM 880us-2200us x8 CH, 50Hz
• SBUS 880us-2200us x16 CH, 74Hz
• Power supply 1–20 A, 1–35 V, mode: DC+CV

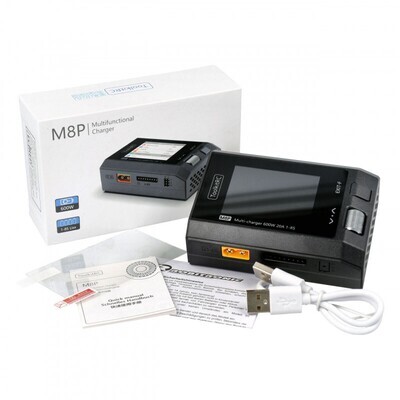

Included:

1x M8 charger

1x USB cable

1x manual
