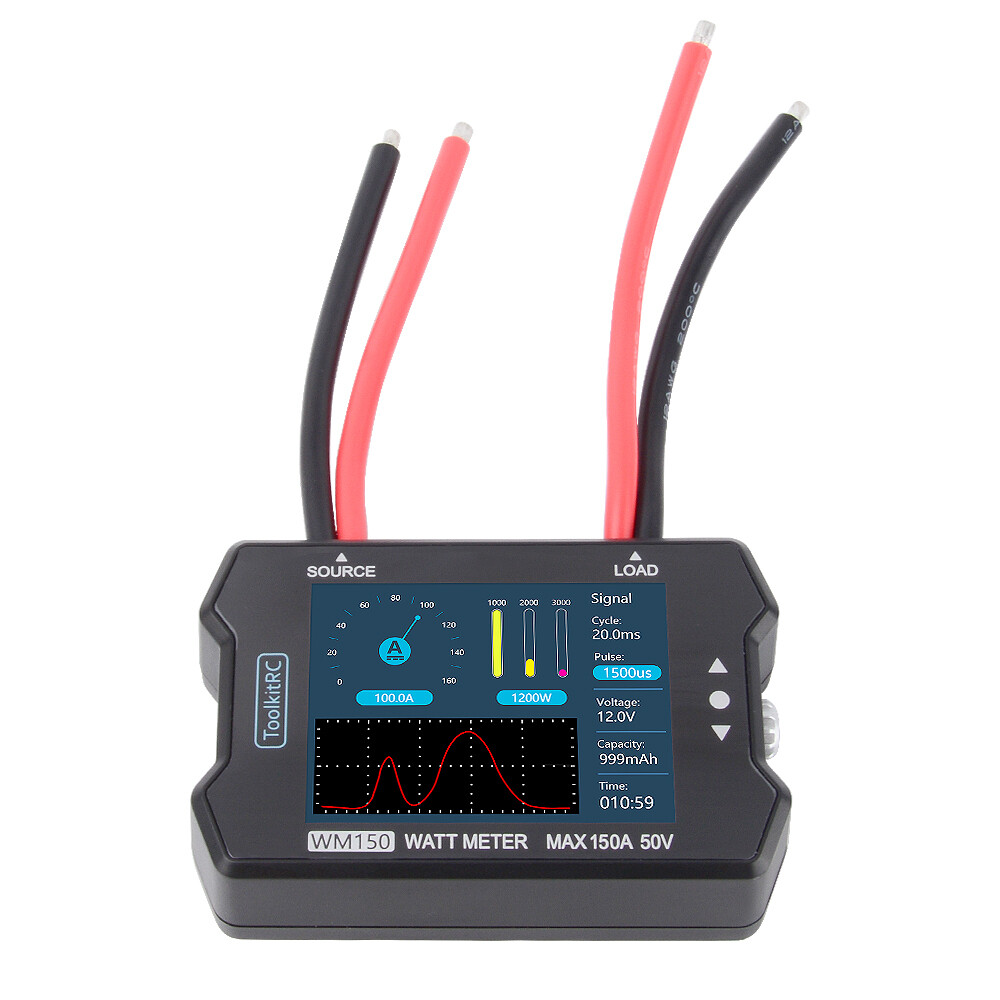

Wattmeter - ToolkitRC WM150 50V 150A - The

ToolkitRC WM150 power analyzer is a wattmeter that can be used to measure voltage, power, and current data for electrical devices such as servos, controllers, batteries, etc.

Features:

• The ToolkitRC WM150 is a wattmeter that can be used to measure voltage, power, and current data from electrical devices such as servos, controllers, batteries, etc.
• 2.4" TFT color display for showing information, waveform graphs, and data statistics
• 2-bit ARM processor
• Rotary knob for controlling the PWM output and the governor throttle signal
• 1-50V power supply, maximum current up to 150A, accuracy to within 10mA.
• Supports PWM signal, precision 1us; the pulse width can be adjusted by turning the knob.
• To automatically change the unit of capacity, the unit display is "mA" when the current is lower than 1A, and when it is higher than 1A, the unit display changes to "A".
• The wattmeter also supports the display of operating hours.
• Firmware updates can be performed via the USB 3.0 interface (5 V/1 A)

Specifications:

• Input voltage: 1–50 V
• Current (max.): 150A (Accuracy: 10mA)
• USB: 5.0 V @ 1 A (USB 3.0 firmware update)
• Output: PWM 1000–2000 μs @ 50 Hz
• Display: 2.4" TFT LCD screen (resolution 320 x 240)
• Product dimensions: 80 x 54 x 23 mm
• Weight approx.: 140g
