Basic information

Wingspan: 67 in / 1700 mm

Length: 71 in / 1830 mm

Weight (without fuel): 8 – 10 kg

What's in the box:

• High-quality servo cables
• Carbon tubes for wings and horizontal stabilizers
• Jet pipe
• Vector (including vector putter)
• Covers for the fuselage, wings and horizontal stabilizers
• Fuel tank (3500 ml)
• Smoke tank (1000 ml)
• UAT tank (200 ml)
• Equipment for the fuel system (fuel lines, 2 x fuel filler, 2 x air vent)
• High-quality magic ties for battery installation
• Pushrod
• Retractable JP landing gear
• Power connectors (3 x XT60E yellow, 1 x XT60E black)
• Mounted wing connectors
• Marking board for measuring each control surface
• Aircraft mounting stand

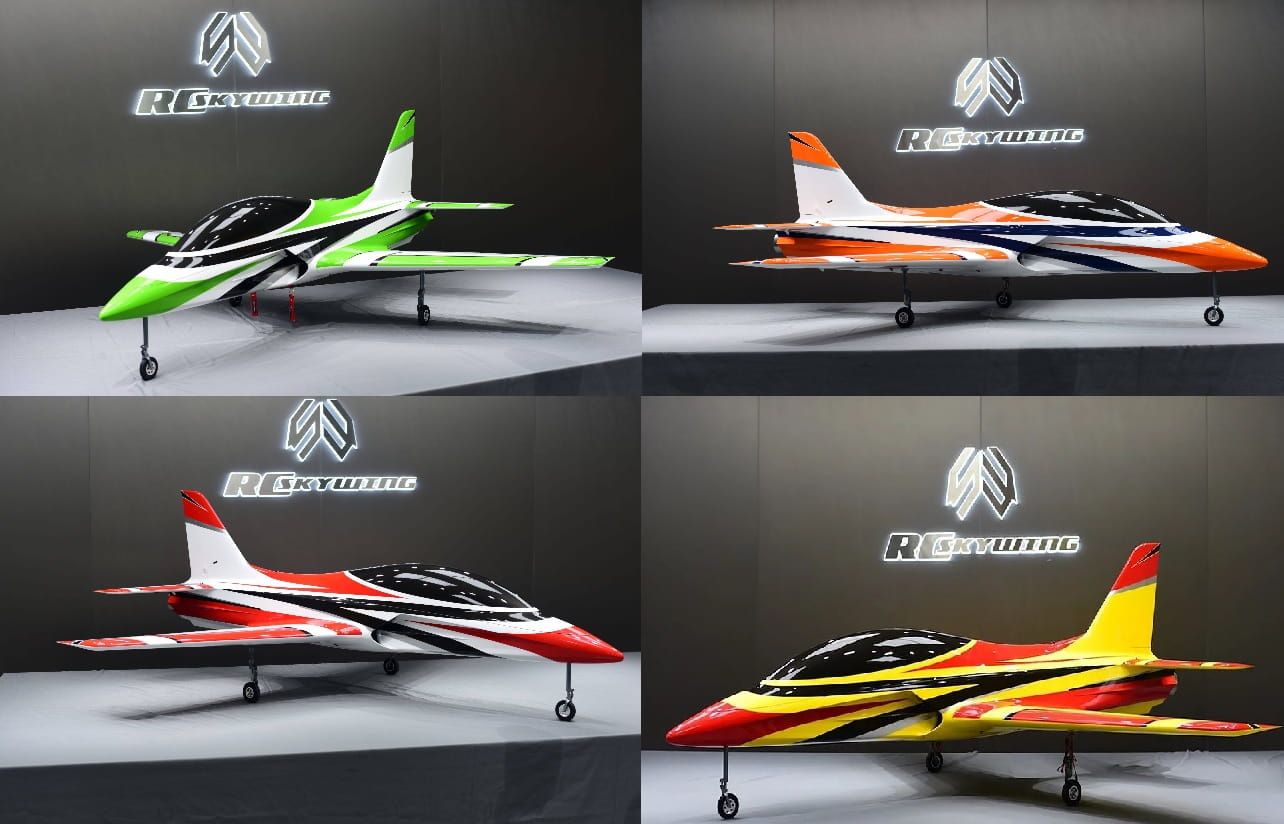

• Available in 5 color variants:
• White – prepared for painting
• Red – White – Black
• Green – White – Black
• Orange – White – Blue
• Yellow – Red – Black

Note: This product is shipped in a single box measuring 199 x 62 x 40 cm (weight – 12,2 kg).

What you need to complete the set:

Turbine for sport flying: 80 – 100 N

Turbine for 3D flying: 120 – 140 N

Servos:

• Flaps – 2 pieces (dimensions 35x15x30 with a minimum pull of 18 kg)
• Ailerons – 2 pieces (dimensions 23x12x28 with a minimum pull of 9,5 kg)
• Elevators – 2 pieces (dimensions 23x12x28 with a minimum pull of 9,5 kg)
• Rudder – 1 piece (dimensions 23x12x28 with a minimum pull of 9,5 kg)
• Vector – 2 pieces (dimensions 23x12x28 with a minimum pull of 9,5 kg)
• Front steering wheel – 1 piece (dimensions 23x12x28 with a minimum pull of 9,5 kg)

Servo levers:

• Flaps – 1.25” M2 - 2 pieces
• Ailerons – 1.0” M2 – 2 pieces
• Elevators – 1.0” M2 – 2 pieces
• Rudder – 1.0” M2 – 1 piece
• Vector – 1.0” M2 – 2 pieces
• Front steering wheel – 1.0” M2 – 1 piece
