Variable-size afterburner system! Thanks to the new segment design, this system can accommodate a wide range of diameters, particularly for large systems. Each segment forms a sector and can be configured in different ways.

The dimensions are therefore largely variable, depending on the number of segments, and can also be arranged in two rows. You can find a template with some possibilities HERE. The segments are each secured to a support with two screws; however, the alignment and layout must be determined for each specific model and therefore require a suitable end frame.

For reference, the following dimensions are possible, for example:

INLINE, in a single row:

130–140 mm with 5 segments

160–170 mm with 6 segments

190–200 mm with 7 segments

210–220 mm with 8 segments

240 mm with 9 segments

260 mm with 10 segments

INTERLACED: slightly interlaced

180–190 mm with 8 segments

200–210 mm with 9 segments

220–240 mm with 10 segments

240–260 mm with 11 segments

270–290 mm with 12 segments

290–310 mm with 13 segments

Technical specifications:

• Output: 6 emitters, 70 lumens each
• Voltage: 2S/8V
• Current: approx. 0.9 amps per segment
• Beam angle: ~100°
• Weight: g (without cable)
• Cable length: 0.5m PTFE cable

Included:

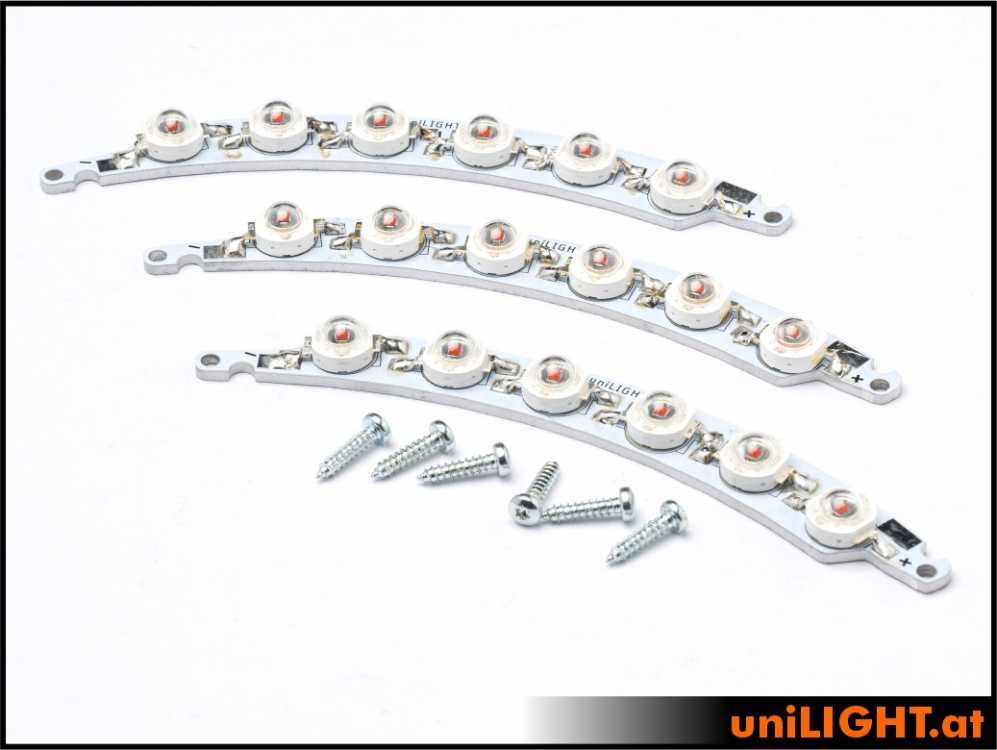

3 RINGX segments with 0.5 m connection cables, pre-assembled for 2S LiPo operation
