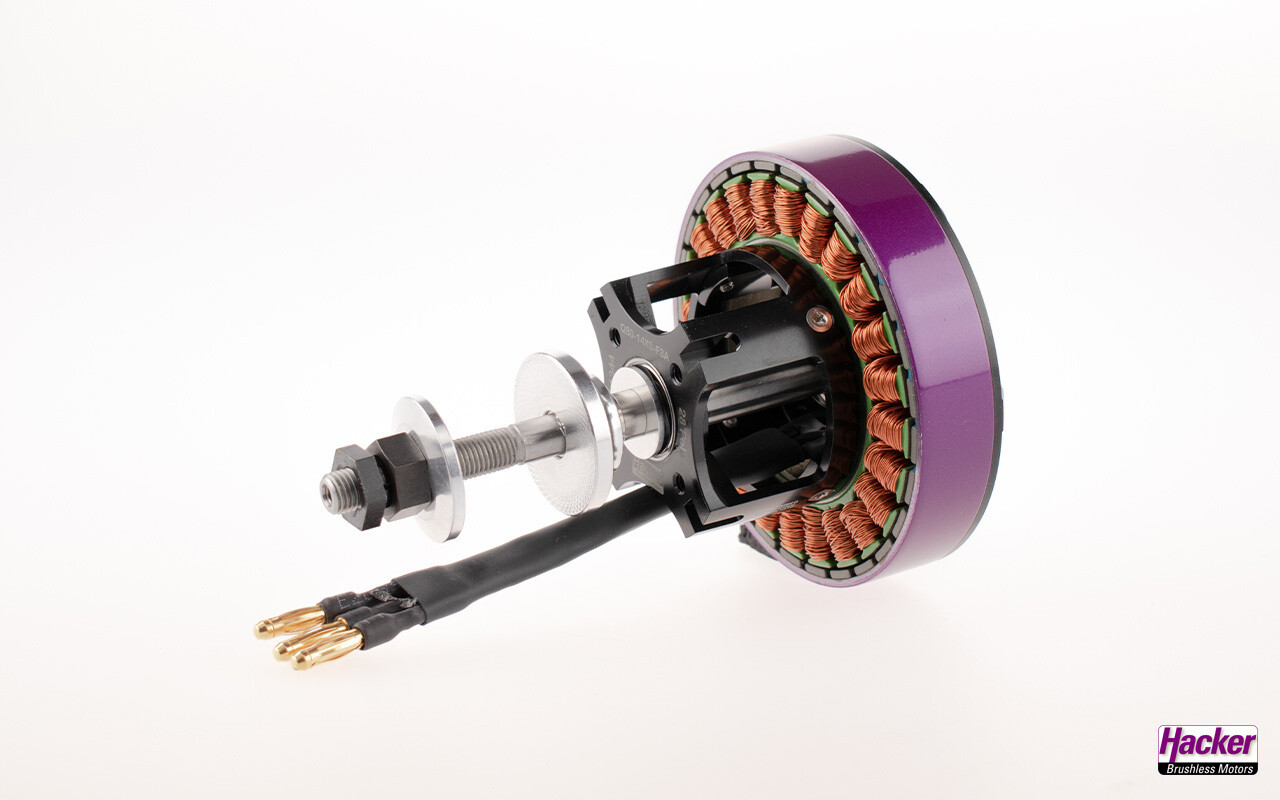

We are proud to present our 2012 innovation: the lightweight Q80-14XS F3A competition motor for models weighing up to approximately 5 kg. The Hacker R&D department has done an excellent job developing this high-performance motor. The Q80 outrunner features an innovative motor design. Thanks to the modified bearing shield and the reduced overall length, the weight has been reduced by more than 100 grams compared to the previous Q80-S.
The new geometry, combined with the compact design, provides maximum cooling. Thanks to its classic mounting on the motor mount (front mount), the Q80 is positioned so that the propeller’s airflow can optimally circulate through the entire motor during operation.
The motor boasts outstanding efficiency, delivers maximum power, and offers top-notch performance. Every Q80 motor is meticulously hand-wound, assembled, and thoroughly tested in-house. "Made in
Germany" quality for the highest standards.
Typical F3A setup:

| Technical Specifications | |
| Max. power in watts (max. 15 sec) | 2800 |
| Number of poles | 28 |
| Turns | 14 |
| No-load current (I0) at 8.4 V [A] | 0.9 |
| Internal resistance (Ri) [Ohms] | 0.025 |
| Recommended timing [°] | 25 |
| Recommended clock frequency [kHz] | 8 |
| Recommended controller [A] (depending on setup) | 85 - 100 |
| No-load speed per volt (kv) | 209 |
| Dimensions and weights | |
| Weight [g] | 528 |
| Length [mm] | 69 |
| Outer diameter [mm] | 88.5 |
| Shaft diameter [mm] | 8 |
| Scope of delivery / Features | |
| Shaft coupler | Yes |
| Mounting bracket | No |
| Gold plug mm (soldered) | 4 |
| Backmount compatible | No |
| Front mountable | Yes |
