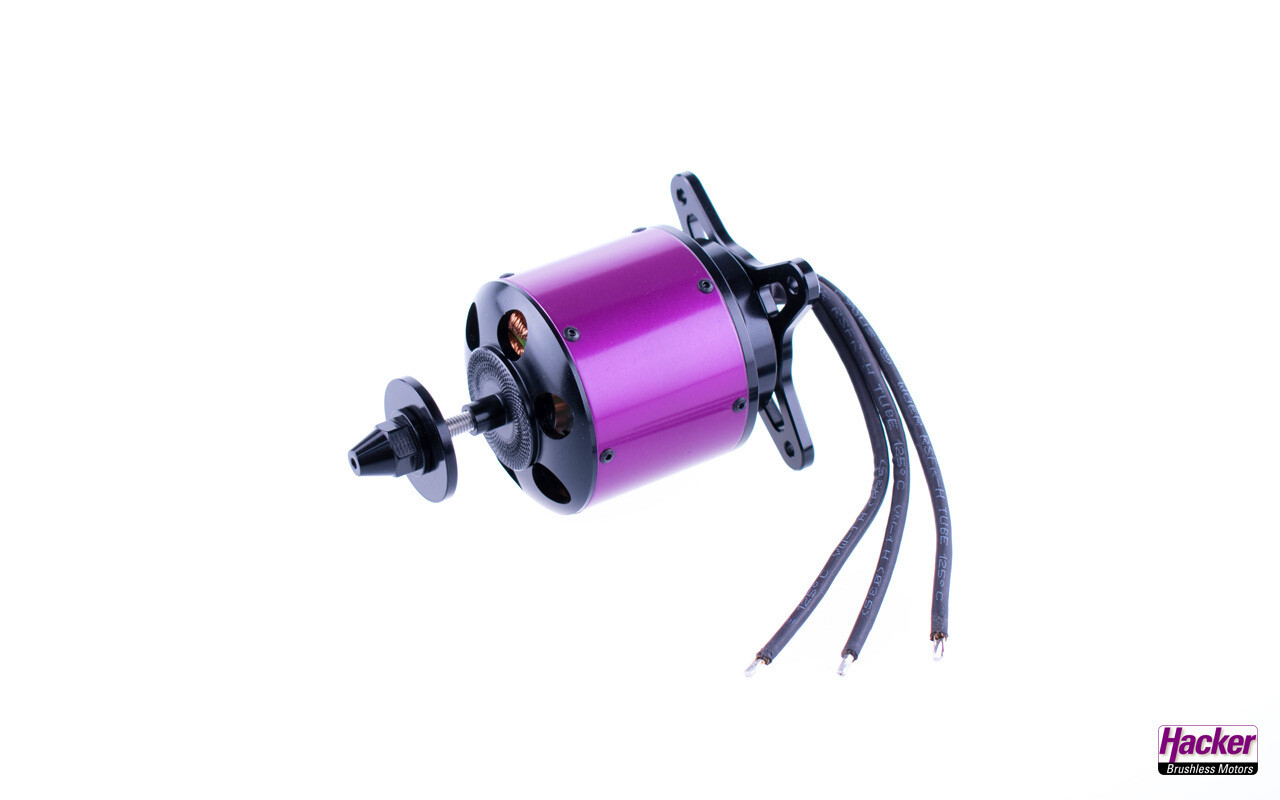

The Q60 outrunner is a true powerhouse, offering the lightest weight combined with the highest manufacturing precision. F3A and aerobatic pilots worldwide rely on this motor, whose design combines power, torque, efficiency, and reliability.
Our 10S powerplant for motorized models with approx. 1.8 to 2.0 m wingspan and 4.5 to 5.5 kg takeoff weight. Thanks to its design, the Q60-7M is ideally suited for direct "backmount installation" or for mounting via spacer bolts on the motor frame.
You can find the appropriate ESCs, batteries, propellers, and mounting accessories such as motor mounts and spacer bolts in the Accessories tab.
1x Q60-7M kv210 F3A, accessories for backmount installation, propeller spinner, and instructions.
| Q60-7M kv210 F3A | |||
|---|---|---|---|
| Item No.: 38798510 | |||
| Propeller | APC-E 21x13 W | APC-E 21x14 | APC-E 22x10 |
| LiPo | 10S | 10S | 10S |
| Voltage [V] | 36.9 | 36.9 | 36.9 |
| Current [A] | 75 | 76 | 69 |
| Power [W] | 2767 | 2800 | 2546 |
| RPM | 6045 | 6000 | 6082 |
| Controller [A] | 80–120 | 80-120 | 80–120 |
| Timing [°] | 30 | 30 | 30 |
| Technical Specifications | |
| Max. power in watts (max. 15 sec) | 2800 |
| Number of poles | 28 |
| Turns | 7 |
| No-load current (I0) at 8.4 V [A] | 1.8 |
| Internal resistance (Ri) [ohms] | 0.025 |
| Recommended timing [°] | 30 |
| Recommended clock frequency [kHz] | 8 |
| Recommended controller [A] (depending on setup) | 80 - 120 |
| No-load RPM per volt (kv) | 210 |
| Dimensions and weights | |
| Weight [g] | 580 |
| Length [mm] | 72 |
| Outer diameter [mm] | 59 |
| Scope of delivery / Features | |
| Propeller driver | Yes |
| Mounting bracket | Yes |
| Gold plug mm (recommended) | 4 - 5.5 |
| Backmount compatible | Yes |
| Front mount compatible | No |
