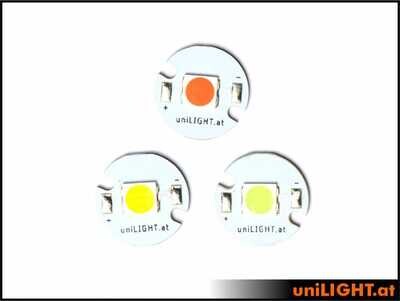

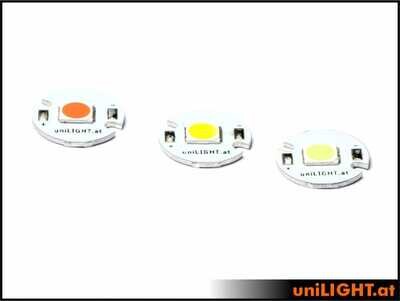

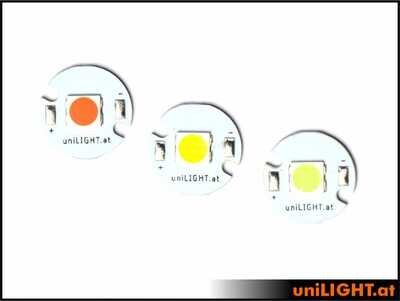

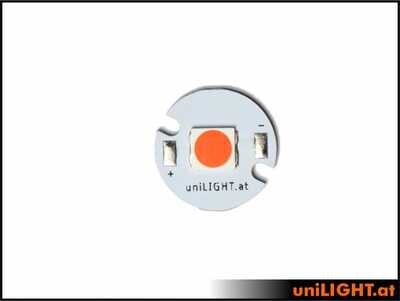

Point LED chip in RED, GREEN, WHITE, WARM WHITE

High-power LED module with a rated power of 3Wx2 for use in strobe and flashing lights. Pre-assembled for operation on a 2S LiPo battery (approx. 8V). When operating on a 3S (12V) battery, the included resistor must be used.

When building your own lights, always consider heat generation. These high-power LED chips cannot be operated without cooling. Use additional heat sinks or reduce the power if, for example, you want to create a position light. This can also be achieved by using the 3S resistor on a 2S battery (approx. 20–30% reduction). Note that LED systems should not be heated above 70°C.

Technical Specifications:

• Electrical: 3Wx2 reference power, 8(12)V, 0.25A
• Beam angle: ~120°
• Luminous intensity: ~80 lumens RED
• Luminous flux: ~120 lumens GREEN
• Luminous intensity: ~220 lumens WHITE
• Luminous intensity: ~220 lumens WARM WHITE
• Dimensions: D15mm, LED chip D5x5mm
• Weight: 1g (without cable)

Package contents:

Includes a 0.5m connection cable and a pre-assembled series resistor for 2S and a resistor for 3S.
