What's Included

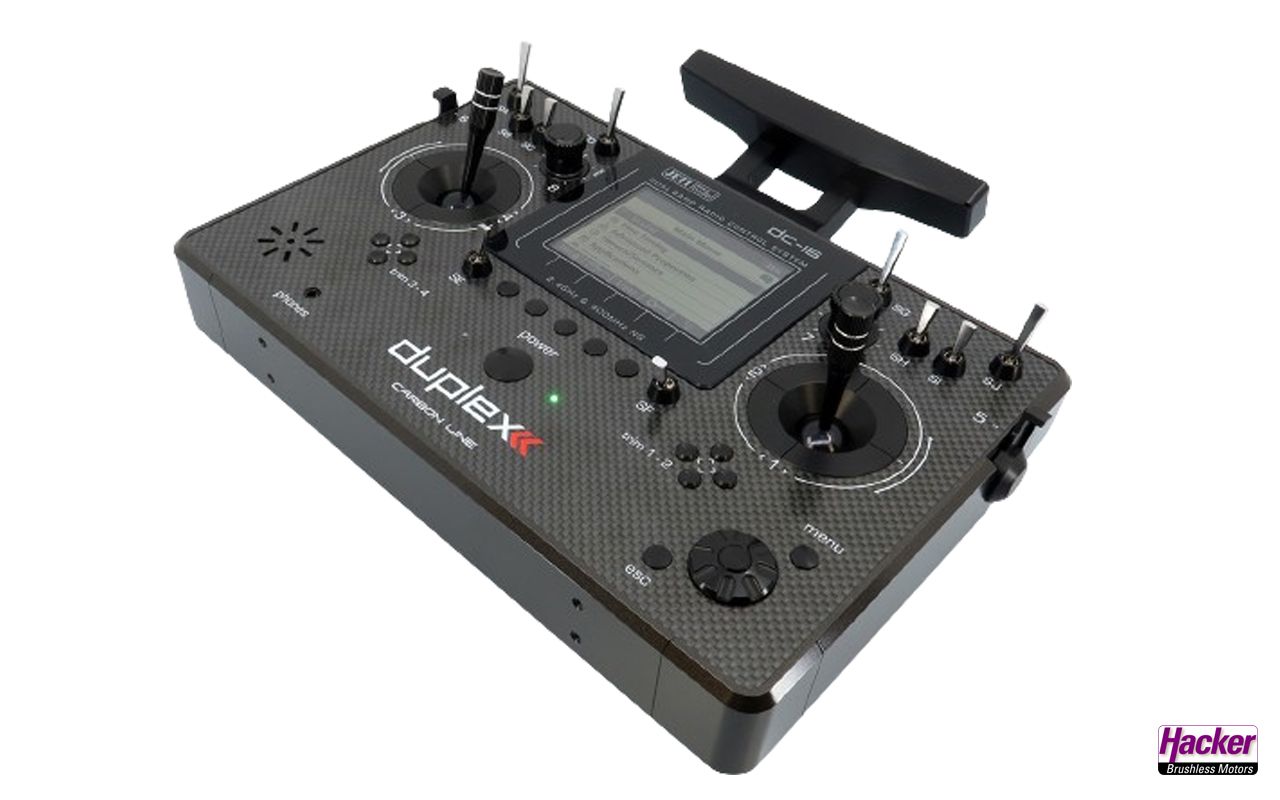

DC-16 II Carbon Line Red Multimode transmitter (factory setting: Mode 2, control mode very easy to change), built-in transmitter battery, charger for transmitter battery, sturdy carrying case, and REX 10 receiver.

Features

• 24 full-featured control channels
• 3 RF modules (2x 2.4 GHz, 1x 900 MHz optional)
• Color display
• 4 model types (airplane/helicopter/multicopter/function model)
• MP3 player
• Telemetry processes up to 64 sensor values
• Voice command input (optional)

900 MHz NG receiver system (optional)

The 900 MHz NG (Next Generation) receiver system is compatible with the DS-12, DS-16 II, and DC-16 II transmitters.

This is an independent, secondary transmission system operating in a different frequency band. If this system is used, the model can continue to be controlled even if the 2.4 GHz band is disrupted (e.g., by microwave radio, during drone flights for TV broadcasts, etc.). The 900 MHz NG backup system only activates when this situation occurs. Thus, it significantly enhances safety in high-end models. Of course, this backup system can be activated or deactivated separately for each model. It is always used in conjunction with the 2.4 GHz transmission system, not on its own.

Transmitter Hardware

• Multimode control stick
• Determination of stick positions via Hall sensors (without potentiometers)
• Control resolution: 4096 steps
• Color display, backlit
• Rotatable joystick assemblies
• All-aluminum control sticks/assemblies, length-adjustable, ball-bearing mounted
• Internal memory
• Integrated Li-ion battery for long operating time
• Charger
• Aluminum carrying case
• Voice output
• Headphone jack
• Digital trims
• Anodized aluminum housing

Transmitter software

• 2.4 GHz DUPLEX EX
• 24 control channels
• Customizable menu navigation
• Virtually unlimited settings
• Virtually unlimited number of model memories
• Firmware update via USB
• Ultra-fast control response
• Power management system for extended runtime
• PC interface
• 4 adjustable model types (airplane/helicopter/scale model; multicopter)
• 8 languages (EN / DE / CZ / FR / IT / PT / SE)

Telemetry functions

• Voice output of telemetry warnings and telemetry values
• Real-time display of telemetry data on the transmitter screen
• Recording of telemetry data
• PC transfer, storage, and editing of telemetry values
• Backup of model data and transmitter settings on the PC

Technical Specifications

• Dimensions [mm] 230 x 270 x 40
• Weight [g] ~1500
