The Premium MAXI servo cable is lightweight, durable, and heat-resistant.

Features

• 2x 0.5mm² cross-section (red and blue)
• 1x 0.3 mm² cross-section (white)
• 30% weight reduction
• only 14 g/m
• Flame-retardant
• Robust insulation
• suitable for aviation

Product Description

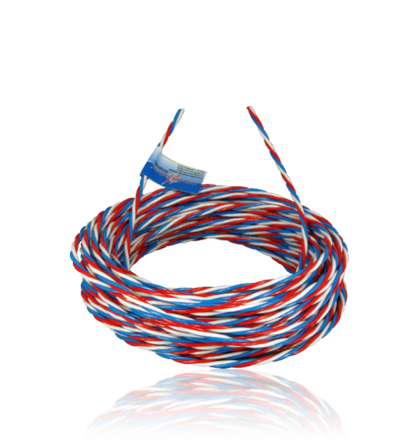

The Premium™ Maxi Servo Cable is the heavier-gauge version of the well-known Premium™ cable with a 0.35 mm² cross-section. Stronger means that the current-carrying wires for positive and negative have a cross-section of 0.5 mm², while the signal wire has a cross-section of 0.3 mm² to save weight. This makes the Premium™ Maxi Cable ideal when longer wires need to be routed in the wing or fuselage for high-performance servos!

The cable is highly flexible and made of very thin individual wires to maximize current flow through the given cross-section. The insulation is extremely durable and thus offers the best protection even with the thin film-like thickness of the material surrounding the copper. This insulation achieves a weight reduction of approximately 30% compared to conventional PVC.

For comparison: The 0.5mm² Premium™ MAXI cable offered here is still lighter than a 0.25mm² standard PVC cable, despite its larger cross-section.

The insulation is flame-retardant and much more heat-resistant than ordinary PVC.

The PowerBox Premium MAXI cable is available in various lengths as loose bundles or on rolls; if you require additional lengths, please feel free to contact us.
