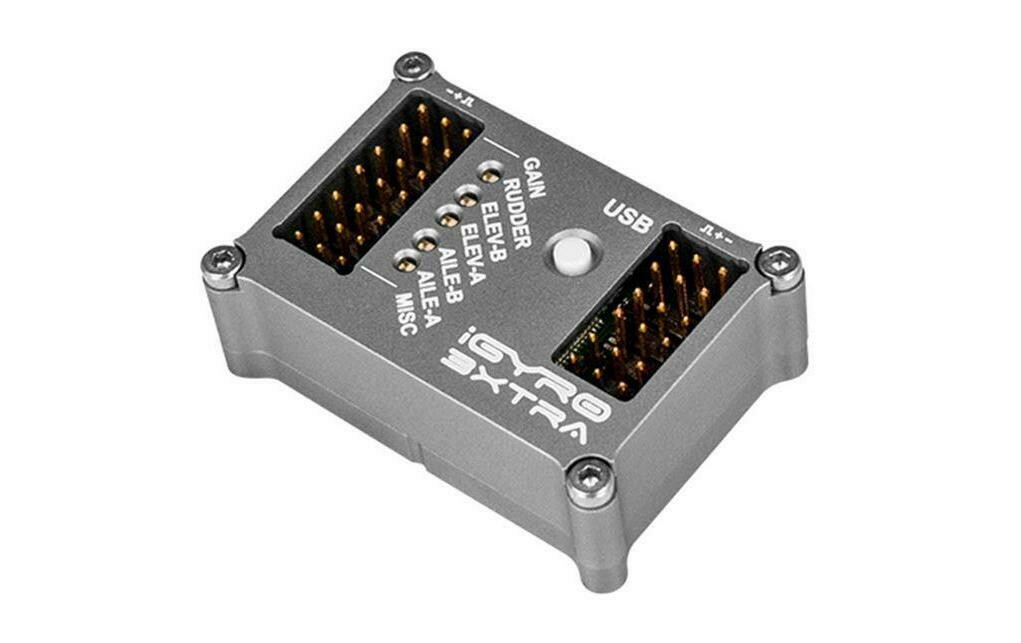

The iGyro 3xtra marks the beginning of the second generation of the iGyro family. The complete overhaul of the control algorithm, the setup procedure, the expanded features, and the vastly improved performance make the iGyro 3xtra the new "state of the art."
Unlike its predecessor, the 3e, delta and V-tail mixers are no longer built into the iGyro. With a simple learning process, the iGyro recognizes all servo mixer combinations, which may even include differentials and unequal travel. Delta wings, V-tail, flaperons, and tailerons are simply programmed in the transmitter as usual. Using a complex 3-dimensional algorithm, the control commands for aileron, elevator, and rudder are separated out individually for all 5 inputs. This ensures precise isolation of the individual axes during control inputs or when using the heading function!
Another significant innovation is the installation orientation learning process by moving the model, which simultaneously defines the directions of action in the iGyro. The uncertainty many pilots feel about whether the direction of action has been set correctly is now a thing of the past.
If you happen to be at the airfield without a smartphone with a BlueCom adapter or a laptop with a USB interface adapter on hand, you can easily and precisely readjust the sensitivity for each individual axis separately using the control sticks on the transmitter—without any additional devices!
The hardware has also been upgraded: comprehensive ESD protection has been built in to provide full protection against static charges in the model.
Additional features such as gyro characteristics, stick priority, and lock-in feel give even experts all the tools they need to customize the iGyro 3xtra to their specific needs.
| Operating voltage | 4.0V - 9.0V |
| Operating current consumption | 40 mA |
| Current capacity | 20 A |
| Signal input | PWM |
| Total servo outputs | 5 |
| Servo pulse resolution | 0.5 µs |
| Gyro control | Heading and normal mode |
| Gyro sensor type | MEMS |
| Number of sensor axes | 3 |
| Dimensions | 43 x 30 x 15 mm |
| Weight | 36 g, incl. 6 patch cables |
| Temperature range | -30°C to +75°C |
