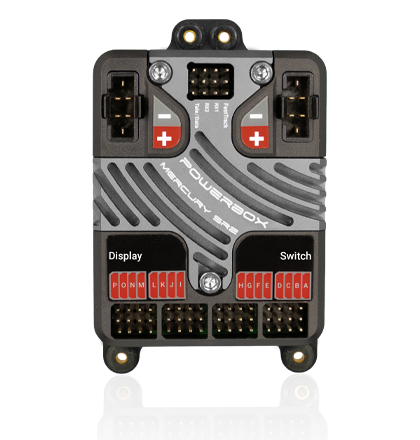

All the features typically found only in larger power supplies are included in the compact PowerBox Mercury SR2: iGyro, servo matching, free channel assignment, and even a door sequencer round out the system!

Features:

• 16 outputs
• High-performance battery switch with high continuous load capacity
• Sunlight-readable OLED display
• Bilingual menu navigation
• Consistent dual design of the power electronics
• Redundant electronic switch
• Servo matching for all 16 outputs
• Auto-matching function
• Door sequencer with setup wizard
• Latest iGyro technology integrated, with the iGyroSAT as gyro sensor
• 9 independent gyro outputs for: 3x ailerons, 3x elevators, 3x rudders
• Two selectable output voltages: 6.0V or 7.8V
• Optional with GPS III for speed-dependent gyro compensation
• Telemetry data for PowerBox P²BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum SRXL2, Multiplex M-Link, JR X-BUS, and Graupner HoTT
• Transmission of battery, receiver, and GPS data
• Nearly full control via the transmitter for PowerBox and Jeti
• Adjustable servo frame rate: 12 ms, 14 ms, 16 ms, 18 ms
• Suppression of servo feedback currents

Technical Specifications:

Included in delivery:

• PowerBox Mercury SR2
• OLED display
• SensorSwitch NG
• 2 patch cables
• 4 rubber grommets and brass sleeves
• 8 mounting screws
• User manual in German and English

Product description:

The PowerBox Mercury SR2 is the top choice when a small, powerful power supply with maximum functionality is required. All the features usually found only in larger power supplies are included in the compact PowerBox Mercury SR2: iGyro, servo matching, free channel assignment, and even a door sequencer round out the system!

The PowerBox Mercury SR2 offers 16 freely assignable outputs, all of which can be individually adjusted via 5-point servo matching. For models with larger control surfaces where two servos act on the same control surface, the unique Automatch function can precisely align the two servos in just a few seconds.

The built-in iGyro software requires an iGyroSAT as the sensor unit—this allows 3 aileron, 3 elevator, and 3 rudder functions to be individually controlled and adjusted. The setup wizard simplifies the configuration of the gyro system and reduces the effort to just a few minutes. During the initial setup, the wizard collects information about the wings, tail configuration, and any vector control system present. A complex model matrix then calculates in the background which servo is connected to which output and links the corresponding gyro function. A whole range of expert settings also offers complete freedom to adapt the gyro system to your specific needs.

Additionally, the GPSIII or the PBS-TAV (True Airspeed Vario) can be connected to the FastTrack input. This adjusts the gyro sensitivity to the airspeed. All GPS or TAV information is also available for telemetry in the transmitter!

The output voltage of the PowerBox Mercury SR2 is regulated and can be set to 6.0V or 7.8V. The power output of the two voltage regulators is generously rated thanks to the milled aluminum heat sinks on the top and bottom, and easily handles power-hungry servos in 3D aircraft.

The built-in door sequencer can control a landing gear and up to three doors. With the help of the setup wizard, the door endpoints can be programmed in just a few minutes. Three predefined modes cover the vast majority of landing gear sequences. Afterward, you can manually adjust the timing of the sequence control as desired.

For PowerBox and Jeti pilots, the PowerBox Mercury SR2 can be operated and adjusted almost entirely* from the transmitter! Telemetry for battery and receiver data is fully implemented for all supported systems.

*except for the sequencer and setup wizard
