The PowerBox Smokepump is a pump developed by PowerBox-Systems specifically for pumping smoke oil.

Features

• Durable metal gear pump
• Flow rate continuously adjustable from 0–100%
• No external shut-off valve required
• High flow rate
• Can be operated directly from the receiver's power supply
• Standby shutdown when operating with a separate battery
• Compact design
• Low power consumption
• Mounting options

Product Description

The PowerBox Smokepump is a pump developed by PowerBox-Systems specifically for pumping smoke oil. Both the mechanical and electronic components are manufactured in-house, and the high quality standard of this pump is evident in its durability: the PowerBox Smokepump is the world’s most durable smoke oil pump. This has been proven by several endurance tests.

The pump mechanism is made entirely of high-quality aluminum and brass. All pumps undergo a running-in process during manufacturing. This ensures that the gears are precisely run in with each other and that the pump is 100% leak-proof. An additional shut-off valve is not necessary for the PowerBox Smokepump due to the tight manufacturing tolerances.

The electronics can be finely adjusted from 0% to 100% in a stepless manner to precisely adapt the flow rate to the conditions in the model. The Smokepump can be powered by either a PowerBox or a separate battery.

If the pump is powered by a separate battery, the electronics switch to "standby" mode as soon as no receiver signal is present. This means the PowerBox Smokepump does not need to be disconnected from the battery with an extra switch when you turn off the model.

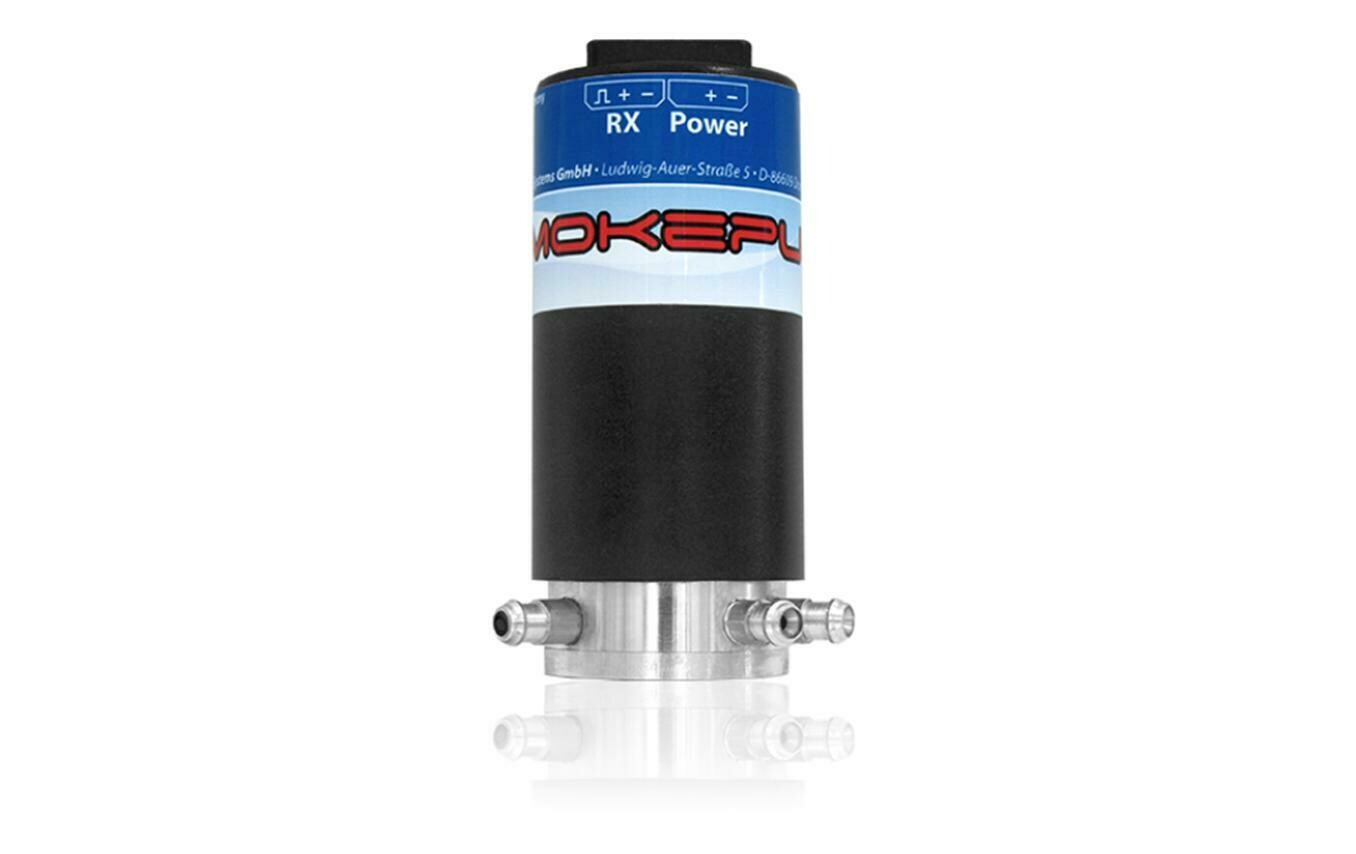

The PowerBox Smokepump is available as a standard version or as a Jet version with higher flow rate and two outlets.

The flow rate of the Smokepump (Part No. 8010) is approx. 750 ml/min; the Smokepump Jet (Part No. 8015) can deliver approx. 950 ml. All necessary connection cables and a heat-resistant hose are included in the set. The standard version set also includes a Y-connector to allow both mufflers to be connected on Boxer engines.

Technical Specifications
