• High controller performance thanks to large-surface anodized aluminum housing
• Built-in controller monitoring

Product Description

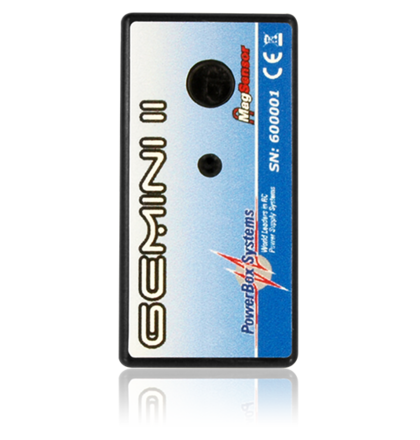

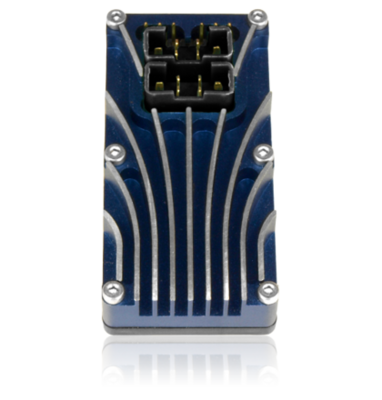

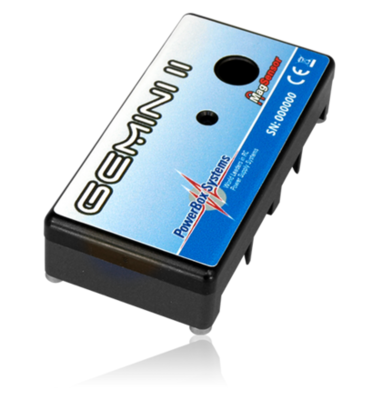

The Gemini II is the logical evolution of the PowerBox Gemini, which has been manufactured unchanged since 2005. Customer feedback and our own experience were incorporated into the redesign. The Gemini II is significantly more powerful, as the housing consists of a high-quality, milled aluminum heat sink. Numerous additional features have been incorporated. For example, the pilot has two options for activating the system: either via the sensor switch using a button or a magnet. This also allows for concealed installation; a built-in buzzer signals the on and off status.

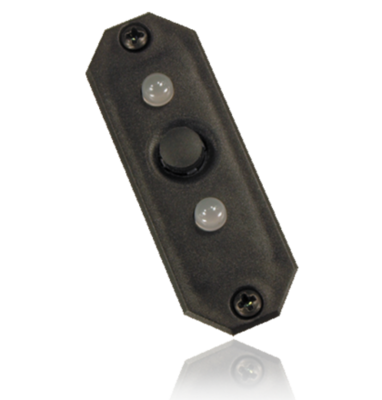

Like all power supplies from PowerBox-Systems, the Gemini II is also fully redundant. Two regulators, two controllers, and two integrated Hall sensors ensure a fail-safe power supply. The external sensor switch activates both electronic switches simultaneously. The 3-color LEDs built into the sensor switch display the battery status in 4 levels. The battery inputs are equipped with MPX high-current connectors.
The dual-regulated output voltage can be set to either 5.9V or 7.4V.

Technical Data
