Version with electric retractable landing gear

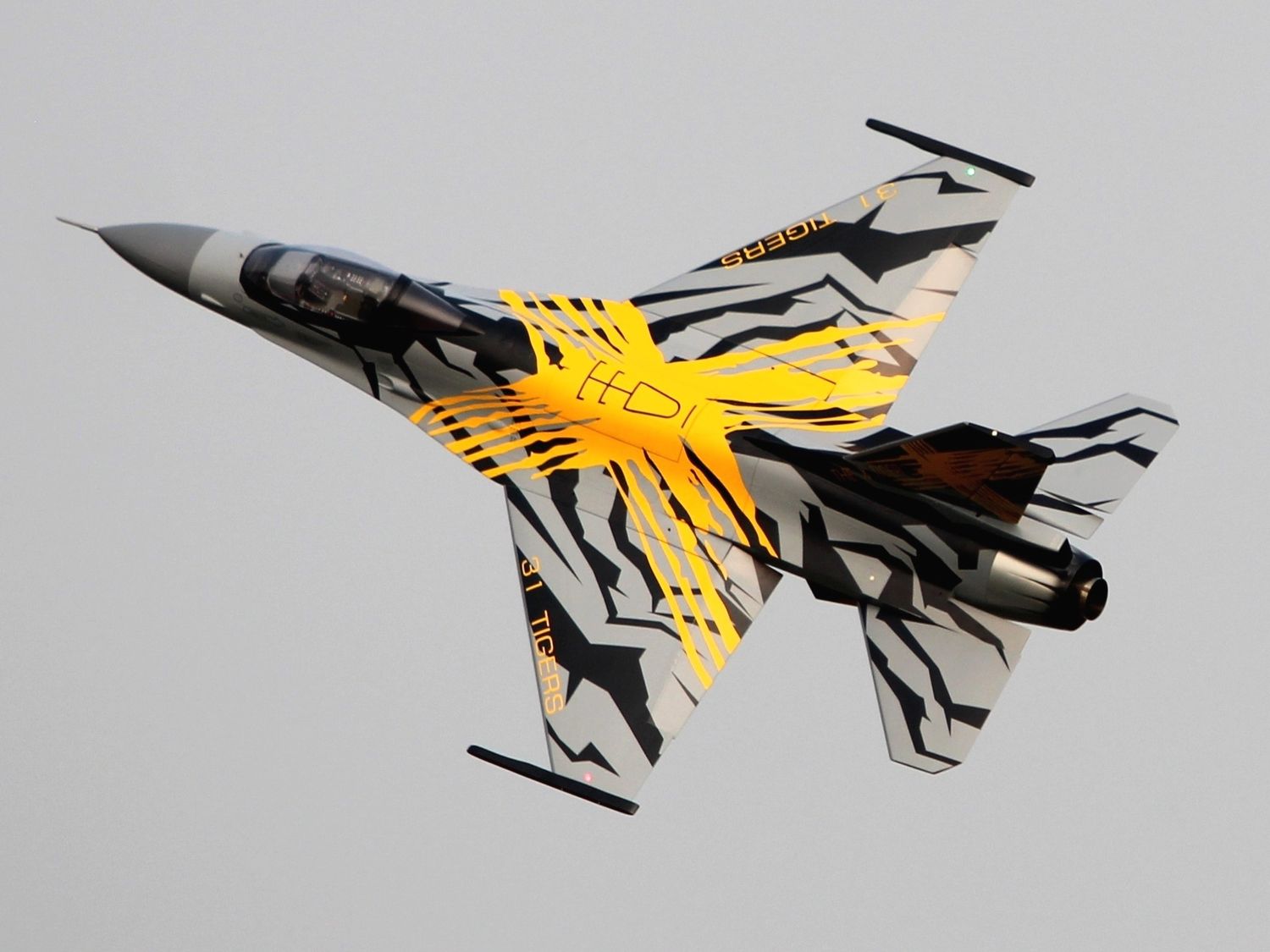

Pilot-RC is pleased to present an absolute legend with the new 1:5 scale F-16 jet. The result is a beautiful scale model that is easy to transport thanks to a split fuselage and impresses with its quick assembly.

Highlights:

Extremely lightweight full-composite construction,
painted out of the mold—no seams;
split fuselage for easy transport
* Assembly with only five screws
Two-piece wings – removable ailerons
Fuselage nose easy to remove
Pre-drilled ball-joint linkages
Pre-installed aileron horns
CFRP wing spar tube
including double-walled thrust tube
including fuel and hopper tanks
including retractable landing gear with brakes
including servo extension cables

Technical Specifications:

Wingspan: 2115 mm
Length: 3060 mm
Weight with turbine: approx. 22.1 kg
Suitable turbine: 20–32 kg thrust
Suitable servos:
* 5x standard size with min. 35 kg force (2x aileron, 2x elevator, 1x rudder)
* 4x mid-size 35 x 15 x 30 mm with min. 16 kg of force
* 2x standard size for landing gear doors
* 2x with min. 35 kg of force – for Vector control (optional)

Scope of delivery:

ARF model in full-composite construction,
including retractable landing gear with brakes,
thrust tube for 20–32 kg turbines,
6600 ml fuel
tank, 250 ml hopper tank
, servo extension cables
, and high-quality accessories such as:
linkage parts, screws, control horns, hinges, servo cables
, and much more

Accessories – optional:

Vector control
system, smoke system, scale
cockpit, LED
lighting
