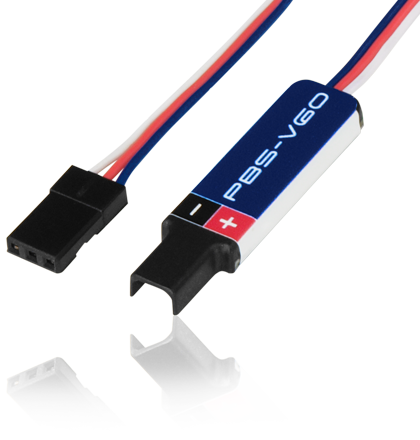

The PBS-V60 is a small and lightweight voltage sensor designed for use with the PowerBox CORE, as well as with other telemetry systems available on the market.

Features

• Voltage measurement up to 60V
• Compact design
• Lightweight
• Supports the following telemetry systems: PowerBox Core, Jeti, Multiplex M-Link, Graupner HoTT, Futaba

Product Description

The PBS-V60 is a small and lightweight voltage sensor designed for use with the PowerBox CORE, as well as other telemetry systems available on the market. The sensor simply plugs into the receiver’s telemetry input. A cable is included for connecting to the battery, which can be easily soldered or plugged into the battery terminal or the balancer connector.

A battery’s voltage is a very reliable indicator of its state of charge. The load and age of the battery do not affect the voltage threshold at which the battery is considered empty. Due to its compact design and low weight, the PBS-V60 can also be used for small models.

The PBS-V60 can measure up to 60V; the desired telemetry system can be selected using the PowerBox Terminal and the USB interface adapter.

Technical Specifications
