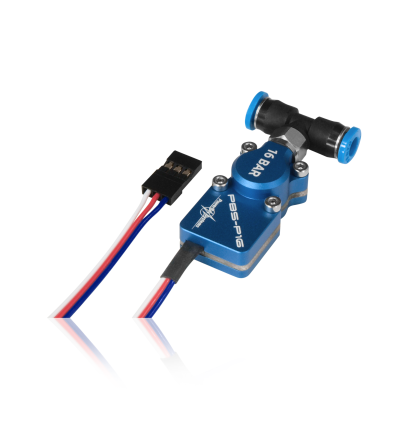

The PBS-P16 is a high-precision pressure sensor rated up to 16 bar, designed for use with the PowerBox CORE as well as other telemetry systems!
The rugged, solid-machined aluminum housing contains a small pressure chamber with a digital MEMS pressure sensor. The Festo T-connector is simply installed into the existing 4mm pressure line at the pressure tank. Other pressure hose fittings can be easily screwed into the M5 thread on the PBS-P16.
The PBS-P16 is plug-and-play for the CORE telemetry system, but can also be configured for Jeti, Futaba*, M-Link, and HoTT using the PowerBox Terminal.
*With Futaba, the pressure value is displayed as temperature, as the system does not support pressure sensors.
Technical Specifications
| Operating Voltage | 4.0V - 9.0V |
| Operating current consumption | max. 20mA |
| Supported remote control systems | PowerBox, Jeti, Multiplex, Graupner, Futaba |
| Dimensions | 42 x 17 x 12 mm |
| Weight | 14 g |
| Temperature range | -30°C to +85°C |
