Features:

• 7-channel 2.4 GHz receiver
• Extremely interference-resistant reception
• Extreme range
• Optional with iGyro SAT
• Integrated telemetry and servo bus (P²BUS)
• High-performance real-time telemetry
• Reception quality and battery voltage fully integrated as telemetry
• Auxiliary output switchable as channel 8 or serial interface (S.BUS or SRXL)
• Parameters: All functions adjustable via transmitter

Technical Specifications:

Product description:

Receiver Units There are five different

receivers compatible with the CORE:

PBR-9D
This is a 9-channel receiver with two redundant receiver modules. The receiver features a P²BUS interface for servo and telemetry data and an auxiliary output that can be configured either as an SRXL bus or as channel 10.

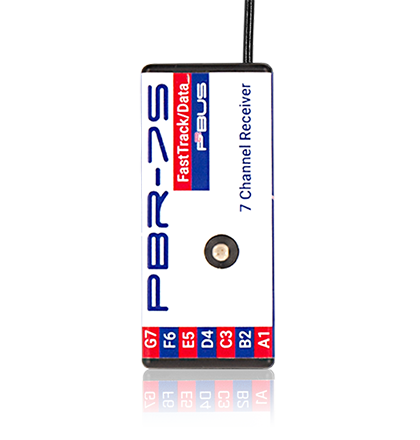

PBR-7S
is a 7-channel receiver with one receiver module. The receiver features a P²BUS interface for servo and telemetry data and an auxiliary output that can be configured either as an SRXL bus or as channel 8.

PBR-5S
Is a 5-channel receiver with a single receiver module. The receiver features a P²BUS interface for servo and telemetry data and, due to its compact size, is ideally suited for small models.

PBR-26D
Is a satellite receiver with two redundant receiver modules. The receiver features a P²BUS interface for servo and telemetry data and an additional output that can be configured as SRXL or S-BUS. This receiver module is designed for connection to our PowerBox power supplies or flybarless systems.

PBR-8E
is an 8-channel receiver with two redundant receiver modules. The receiver can output 8 channels via PWM and transmits telemetry information such as battery voltage and reception quality.

With the exception of the PBR-5S and the PBR-8E, all receivers feature a FastTrack interface that allows for easy connection of the iGyro SAT!
