Features

• 26-channel 2.4 GHz receiver
• Extremely interference-resistant reception
• Extremely long range
• Ideal as a receiver unit for PowerBox or FBL systems
• Integrated telemetry and servo bus (P²BUS)
• High-performance real-time
• telemetry Reception quality and battery voltage are fully integrated as telemetry
• Supports various protocols such as P²-BUS, FastTrack, S.BUS, SRXL, PPM12
• Parameter settings for all functions via transmitter

Technical Specifications

Weight	3g
Temperature range	-30°C to +85°C

Operating voltage	4.0 V – 9.0 V
Current consumption (operating)	58 mA
Supported remote control systems	ATOM/CORE
Channels	26
Servo outputs, programmable	P²-BUS, FastTrack, S.BUS, PPM12
Servo pulse resolution	4096 steps
Supported telemetry systems	P²-BUS
Dimensions	46 x 13 x 4 mm

Product description:

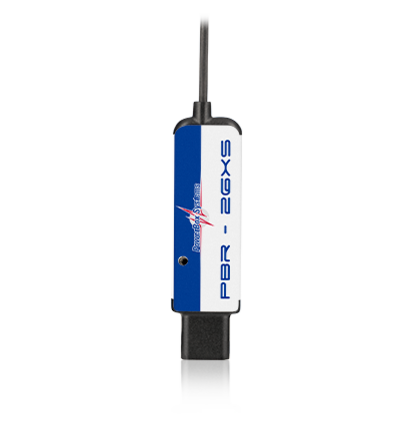

The PBR-26XS serves as a compact receiver unit for all PowerBox systems or as an external receiver extension for PBR receivers. Thanks to its extremely slim profile of just 4 mm, the PBR-26XS can be installed even in thin vertical stabilizers for optimal reception.

The PBR-26XS interface supports not only PowerBox protocols such as P²-BUS and FastTrack Out, but also PPM12 and S.BUS. This allows the receiver unit to be used with flight simulators or third-party helicopter gyro systems.
