Features

• 14-channel 2.4 GHz receiver
• Two independent redundant receiver units
• Receiver units expandable with PBR-26XS
• Extremely interference-resistant reception
• Extreme range
• Optional with iGyro SAT
• Two integrated telemetry and servo bus interfaces (P²BUS)
• 30 cm antennas for all installation situations
• Integrated electronic switch, controllable via pushbutton, microswitch, or MicroMag
• MPX high-current connection up to 20A
• High-performance real-time telemetry
• Receive quality, battery voltage, current, and capacity integrated as telemetry
• Serial interface (FastTrack, S.BUS, and SRXL)
• Parameter settings for all functions via transmitter

Technical Specifications

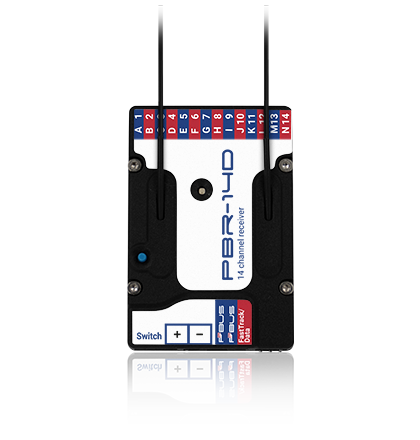

A 14-channel receiver with two redundant receiver modules. Of particular note is the built-in 20A electronic switch, which can be operated either via the built-in blue button or an optional microswitch. The battery is connected to the MPX high-current socket, ensuring a reliable power supply to all 14 servo connections. The receiver features two P²BUS interfaces for servo and telemetry data and an additional FastTrack/Data output capable of outputting various third-party bus systems or channel 15. Optionally, the iGyroSAT can be connected to utilize the built-in iGyro function. The built-in receiver can be expanded with an additional receiver unit using the PBR-26XS.
