Features

• 10-channel 2.4 GHz receiver
• Slim design for narrow fuselages
• Extremely interference-resistant reception
• Extreme range
• Integrated telemetry and servo bus (P²BUS)
• High-performance real-time telemetry
• Telemetry reception quality and battery voltage fully integrated as telemetry
• 6-axis iGyro with optional iGyro SAT
• Data output switchable between FastTrack, PWM, S.BUS, SRXL, or PPM12

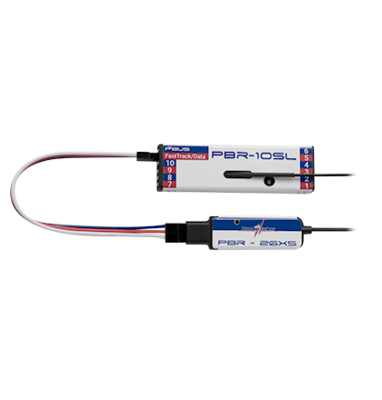

• Receiver section expandable with PBR-26XS
• Parameter settings for all functions via transmitter

Technical Specifications:

Weight	12 g
Temperature range	-30°C to +85°C

Operating voltage	4.0 V – 9.0 V
Operating current consumption	58 mA
Supported remote control systems	ATOM/CORE
Channels	10 + 1
Servo outputs, programmable	PWM, FastTrack, S.BUS, SRXL, PPM12
Servo pulse resolution	4096 steps
Supported telemetry systems	P²-BUS
Dimensions	60 x 18 x 10 mm

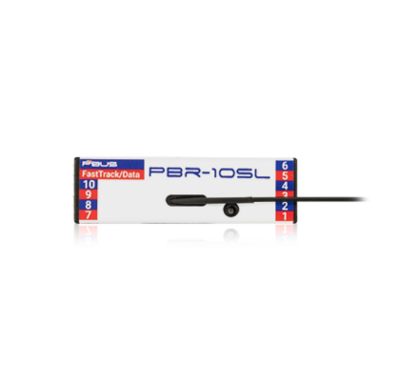

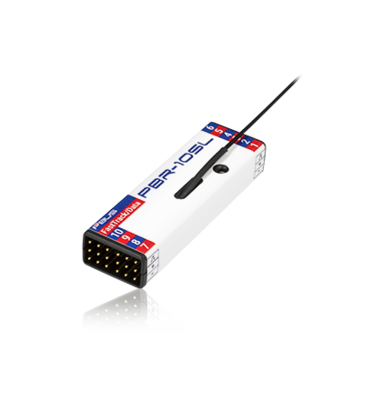

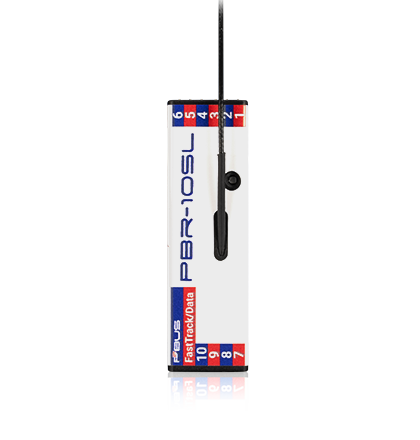

Product description:

An extra-slim 10-channel receiver with a receiver unit designed for tight installation spaces. The receiver features a P²BUS interface for servo and telemetry data and an auxiliary output that can be configured either as an SRXL bus or as channel 8. Optionally, the iGyroSAT can be connected to utilize the built-in iGyro function. The built-in receiver module can be expanded into a redundant reception system using the PBR-26XS.
