Description:

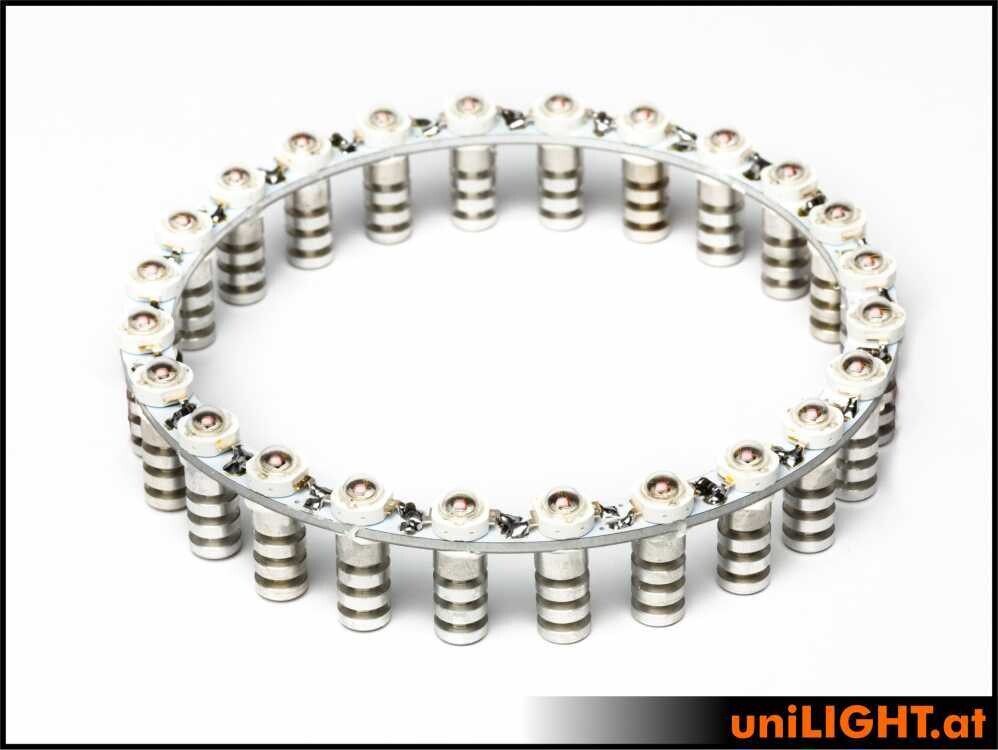

Our Ultra-Power afterburner rings are the first thrust nozzle rings on the market based on emitter technology. Aluminum-core PCBs manufactured specifically for this application make the installation of the high-performance emitters and the required heat dissipation possible. Additionally, a cooling rod is already bonded behind each emitter to dissipate sufficient heat during operation. Without additional air cooling, the rings can be operated continuously for approximately 1–2 minutes; therefore, the mixture should only be introduced into the gas channel in the upper region.

The light output of the emitter rings is extremely high and visible in a range of >120° in all directions around the ring. This illuminates both the exhaust and directly into the nozzle, which further greatly enhances the effect of a glowing thrust tube.

Direct operation with a 2S (8V) LiPo. Ensure sufficient cooling air during operation. The high power consumption of the afterburner rings requires adequately sized batteries and a high-performance controller.

This ring is supplied with a 1m silicone cable. A second cable can be soldered on if needed.

Light Spreader

NEW: Each afterburner ring includes a matching 2nd-generation nozzle attachment. With the cover, you get a completely different lighting effect—highly recommended if the ring is fully visible during operation.

Technical Specifications:

• Output: 30 emitters with 60–90 lumens
• Voltage: 2S/8V
• Current: 4.5–5 amps
• Beam angle: ~100°
• Internal dimensions: 108.6 mm
• External dimensions: 122.4 mm
• Weight: 62 g (without cable)

Included:

Pre-assembled with a 1m connection cable for 2S LiPo operation, light spreader attachment
