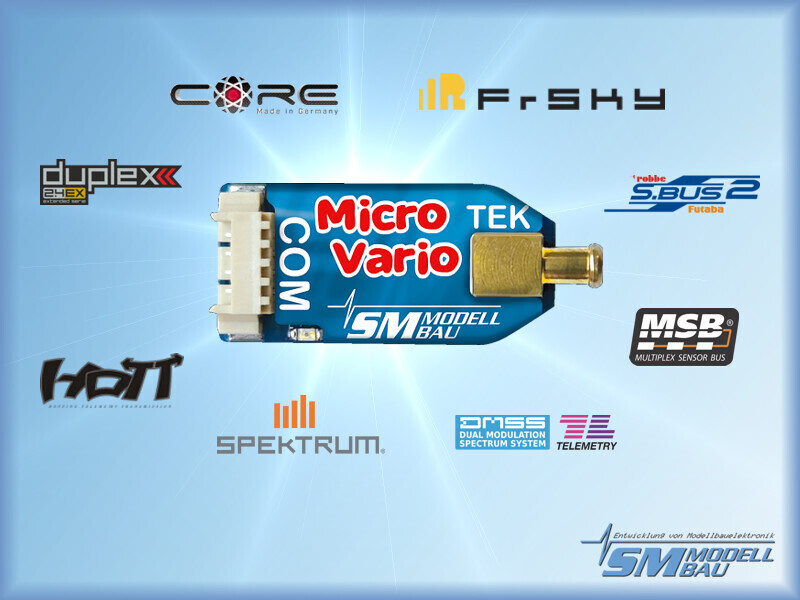

Extremely small and extremely light! Weighing just 1.8 g without the cable, the MicroVario offers a high-quality TEK Vario with two pressure sensors and an accelerometer!

The MicroVario uses a built-in high-resolution pressure sensor to provide a high-quality Vario via telemetry and, thanks to the integrated TEK connector, also allows the use of compensation nozzles. This results in a Vario function that displays actual climb and sink rates very accurately, independent of “stick thermals.” For precise altitude measurement even when operating with a TEK nozzle, a second pressure sensor is built in, which provides accurate altitude data regardless of airspeed.

When using a TEK nozzle, airspeed is also measured and displayed without the need for additional sensors.

The built-in 3-axis accelerometer, with a measurement range up to 16 g, provides information about G-forces during flight.

All MicroVario measurement values can be viewed live directly via our UniDisplay. Naturally, all settings and alarms can also be conveniently programmed via the display.

In line with our philosophy of supporting as many systems as possible, the MicroVario also supports telemetry from:

• Jeti Duplex
• Multiplex M-Link
• Graupner HoTT
• Futaba
• JR DMSS
• FrSky
• Spectrum (via Spectrum adapter)
• PowerBox Core

The telemetry system used only needs to be specified once in the MicroVario settings. This can be done either using our PC program "SM MicroVario Tool" or with the UniDisplay. HoTT is selected by default.

And here’s what the MicroVario can do:

• High-resolution vario with TEK connection
• Altitude measurement with a second pressure sensor featuring automatic zeroing after power-up
• Airspeed measurement via a TEK nozzle
• Integrated 3-axis accelerometer up to ±16 g
• Full telemetry support for Jeti Duplex (EX), Multiplex M-Link, Graupner HoTT, Futaba FASSTest S.BUS2, JR DMSS, FrSky, Spektrum, and PowerBox Core
• Connection for receiver signal to remotely control specific functions
• Measurement of receiver battery voltage
• Current status is indicated via LED
• View measurement values live directly with our UniDisplay
• Parameter settings possible via PC, UniDisplay, and telemetry

Free firmware updates via PC using our USB interface (Order No. 2550) or existing USB connection cables such as those from Jeti, Multiplex, or Graupner

Can be used virtually anywhere thanks to its compact size and low weight

Please refer to the user manual for technical specifications and the complete range of functions.

Technical Specifications:
