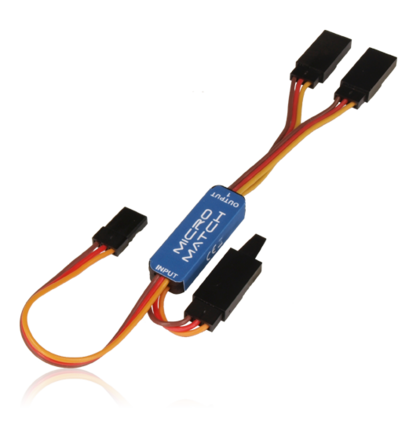

The PowerBox MicroMatch is used wherever there isn't room for a battery switch or the switch doesn't offer this function.

Features

• Servo-Match function on both outputs
• Rotation direction, center, and end points precisely adjustable
• Programmable via smartphone app (BlueCom) or PC (USB)
• Quick reverse function
• Adjustable output frame rate
• 16-bit processor for fast signal processing
• 4096-step resolution for the latest generation of servos
• Noise suppression and pulse amplification functions
• Highest current capacity, limited only by the connector
• Updatable via BlueCom or USB interface adapter

Product Description

The PowerBox MicroMatch is used wherever there is no room for a battery switch or the switch does not offer this function.
With the help of the MicroMatch, the servo travel and center positions of both outputs can be easily adjusted. This allows two servos working together on a rudder to be electronically synchronized. The servos no longer work against each other; the torque and speed of both servos are fully utilized. Another positive effect: power consumption and servo wear are significantly reduced.

A servo reverse function allows you to reverse the direction of the servos with just one click. This enables elevator servos installed in a mirror-reversed configuration to be operated on a single channel. Dual rudders or nose wheel steering systems are other applications.
All settings can be made using the USB interface cable or the BlueCom™ adapter. A very practical feature of BlueCom™: You can work directly on the servo lever and conveniently adjust the settings via Bluetooth using your mobile phone!
The MicroMatch is upgradeable, so nothing stands in the way of future functional enhancements.
