The KingTech G4 uses SBus data transmission. With motor/ECU integration, all operating parameters—including total runtime—are recorded in the motor. The smaller and lighter external data relay module (DRM) handles all data, signal, and power transmission. The pump is a digital brushless SBus pump.

A micro-USB port is available for future integration with wireless mobile apps. The G4 is equipped with a brushless starter motor, ensuring reliability and longevity, and also features an integrated FOD screen. After a run cycle and with the receiver turned off, the GSU remains powered on only until cooling is complete.

All KingTech engines come with a *** lifetime warranty *** provided that regular maintenance is performed by the manufacturer. To qualify, the turbine must be registered with KingTech after purchase.

The engine runs on diesel, petroleum, or kerosene with 5% turbine oil.

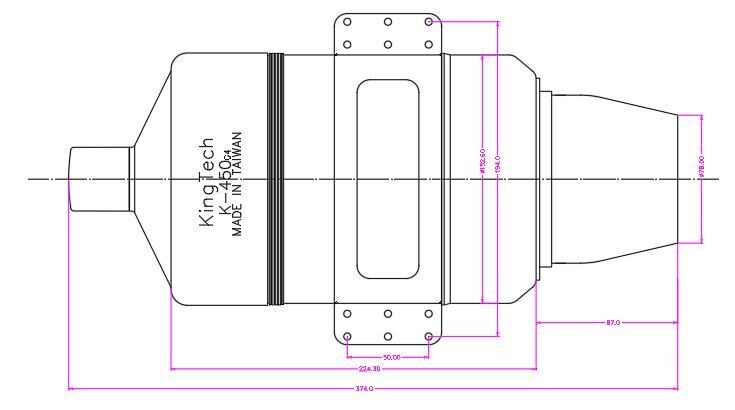

K-450G4 SPECIFICATIONS:

Diameter: 152.6 mm (6″)

Length: 374 mm (14.72″)

Weight: 4 kg (8.81 lb)

RPM range: up to 25,000–90,000 RPM

Max. thrust: 45 kg (99 lb)

EGT: max. 760°C

Fuel consumption: 1,100 g/min

Fuel: Diesel, kerosene, petroleum

Lubrication: 5%

Maintenance cycle: 25 hours

Scope of delivery:

- Turbine

- Data relay module (DRM)

- Ground support unit (GSU)

- Wiring harness and hose set

- Fuel pump, filter, and diverter valve

- Fuel inlet mounting parts

- Instruction manual
