Technical specifications:

• 6 primary contacts (redundant; for main functions such as servos)
• 3,000 mating cycles, 10 A
• Strain relief, handle, and kink protection
• Primary contacts
• Redundancy already built into the connector
• Easily accessible contacts and solder points
• Classic connector with secure locking
• Fully assembled with 2m cable (0.25mm²)
• As a kit with all parts and screws
• Dimensions of faceplate: 13x50mm
• Plug weight: 14 g without cable

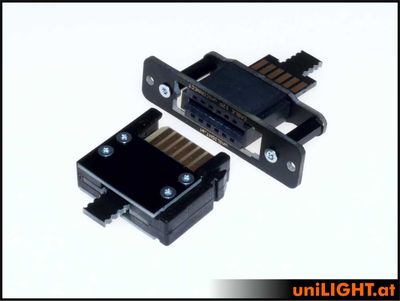

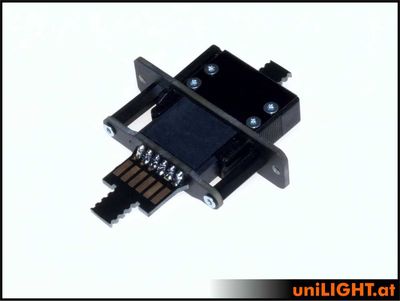

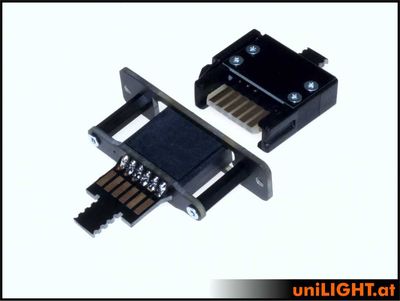

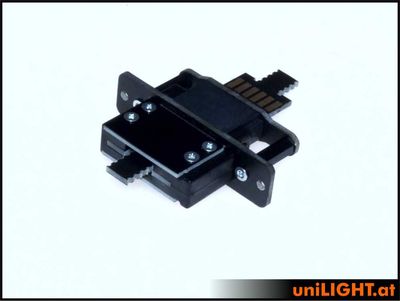

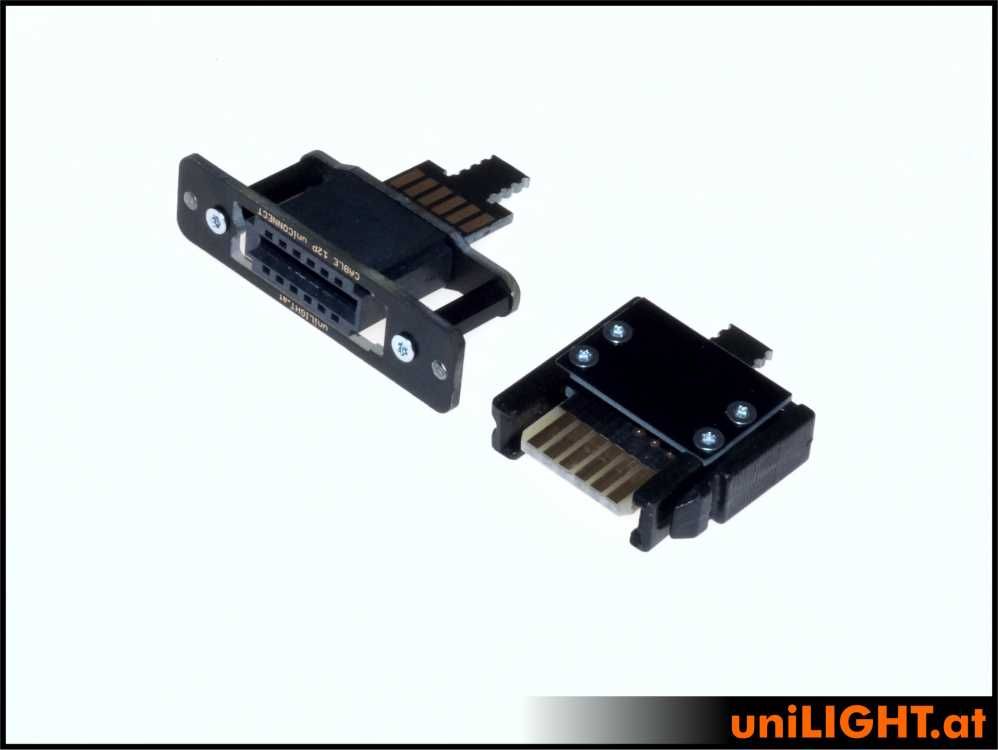

The innovative uniCONNECT connector system utilizes solid blade contacts and high-load-capacity sockets. Thanks to the new design, it is now finally possible to achieve a high number of pins in a compact connector—up to 28 pins. Additionally, over 3,000 mating cycles are possible at loads up to 10A. Optimally designed for use in model building.

The blade strips offer the advantage that all cables can be soldered reliably and easily without the risk of a plastic carrier melting. They also feature strain relief, locking, a grip, and kink protection. The contacts of the blade strips are always visible, allowing damage and contamination to be detected immediately.

The greatest advantage of the system, however, is that double redundancy for important control functions is already built into the connector. For this reason, the system not only specifies conventional pin numbers but also distinguishes between primary pins (double, for main functions) and secondary pins (single, for lights, landing gear, brakes, etc.).

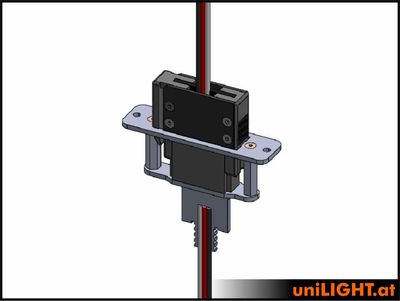

Locking CABLE is a classic connection in which a socket is permanently installed, e.g., in the fuselage, and the cables from the wing are routed to a plug. During assembly, this plug is inserted into the socket and locks into place there. The remaining cable is pushed back into the wing after insertion.

RTR is supplied as a fully assembled and soldered unit with a 2/3m cable, directly connected 1-to-1. This is installed on one side, the length to the servo is determined, and it is terminated with crimp contacts. The remaining cable is routed on the other side to the receiver and terminated there. This finished unit is always delivered as a single piece, i.e., 1xM and 1xF soldered end-to-end.

DIY as a kit for the model builder, including all individual parts and screws for self-assembly. This makes it very attractive in terms of price; two pairs are always supplied, i.e., 2xM and 2xF as a kit.

RTW as a pre-assembled connector to which only the cables need to be soldered—the assembly of the plates is already complete. 2xM and 2xF are supplied
