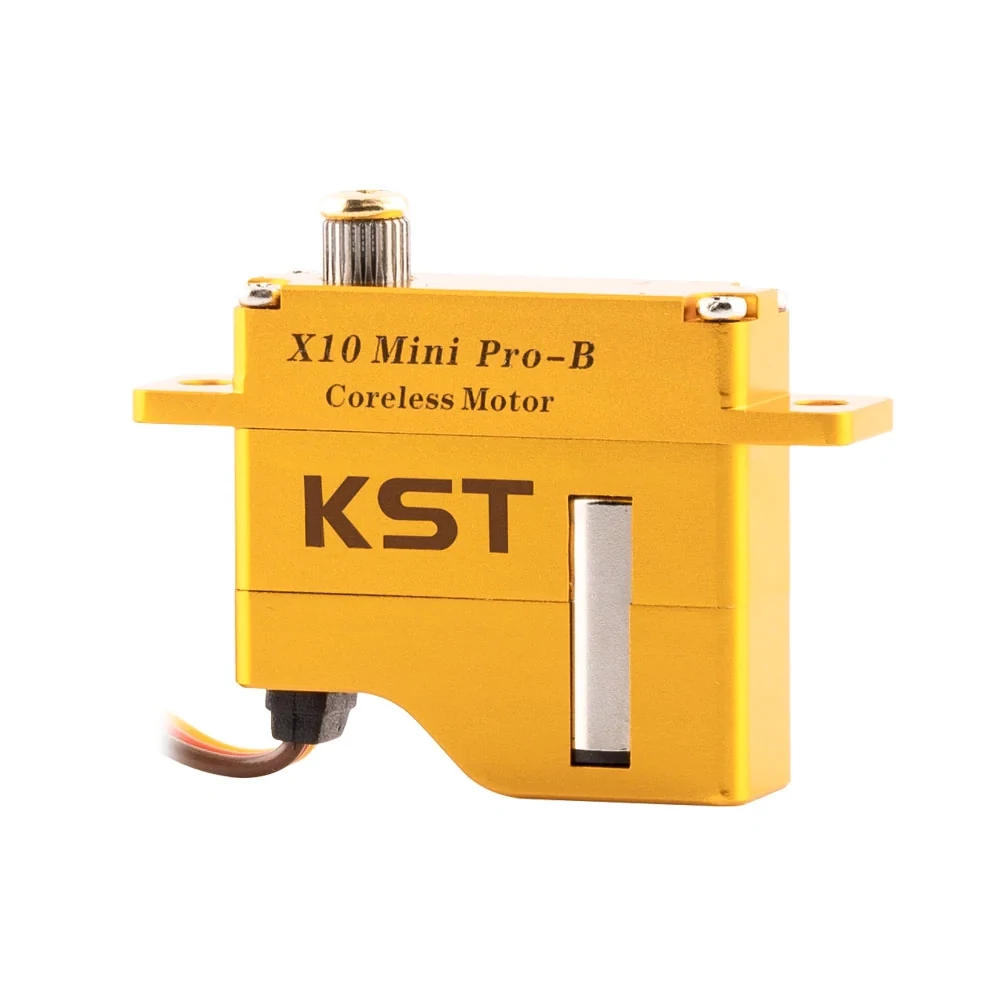

The new X10 Mini Pro Servo is an excellent mini servo for competition gliders, such as F5J and F5B, and large-scale gliders.

Compared to the standard X10 Mini Servo, it offers higher torque, faster speed, and a larger travel angle. The X10 Mini Pro Servo boasts an outstanding torque of 8.0 kgf·cm and an impressive speed of 0.08 seconds.

Using the programming function, the servos can be customized for a unique flying experience. Additionally, this servo is equipped with a CNC-machined aluminum housing and a hardened steel gear to enhance durability and precision. It is definitely an excellent micro servo for a fantastic flight.

• Programmable
• Supports soft start
• Hardened steel gears
• Anodized CNC aluminum housing
• Extremely high torque and excellent speed
• Smaller size and larger range of motion
• Ideal for competition gliders and large gliders

Technical Specifications:

• Rated voltage: DC 7.4V
• Voltage range: DC 4.8V–8.4V
• Torque: 4.5Kgf.cm@4.8V, 6.0Kgf.cm@6.0V, 7.2Kgf.cm@7.4V, 8.0Kgf.cm@8.4V
• Speed: 0.13 sec/60°@4.8V, 0.11 sec/60°@6.0V, 0.09 sec/60°@7.4V, 0.08 sec/60°@8.4V
• Operating frequency: 1520μs/333Hz
• Standard travel angle: ±60° = 120° total
• Temperature range: -10°C to +65°C
• Soft start: Programmable
• Programmable: Yes
• Housing material: Aluminum alloy
• Motor type: Core-less DC motor
• Gear set material: Hardened steel
• Position sensor: Potentiometer
• Housing dimensions: 30mm x 10mm x 28mm ±0.2mm
• Weight: 20 g ±10%
