The X08H Plus V6.0 is a version of the KST X08 Plus servo featuring horizontal mounting tabs (also known as mounting brackets), making it suitable for use in wings and other flight surfaces. The KST X08H Plus V6.0 is a very lightweight (9.5 g) low-, medium-, and high-voltage servo in a metal housing. It is based on the proven KST X08H V6 servo but is equipped with a larger motor. The KST X08H Plus V6.0 takes another step forward by not only further improving the gear train to minimize potential slippage, but the servos are now programmable with the KST Tool Card #1/KST Tool Card #5 (sold separately) to adjust the end points, center, and direction for perfect installations.

It is particularly well-suited for ailerons on F5J gliders, electric racers, and all models with thin wings. Despite its slim profile of just 8 mm, the powerful coreless DC motor and gearbox deliver good torque and high speed. The X08H Plus can be operated at voltages up to 3.8V (1S LiPo) or 8.4V (2S LiPo). KST servos feature excellent machining tolerances in the gearbox, and this servo is completely backlash-free and can compete with products that cost twice as much. Despite the lack of an -MG designation, this servo has metal gears and is very robust.

The high torque, good speed, and slim 8 mm profile make the KST X08H Plus suitable for many high-performance gliders, pylon racers, and EDF applications. With a torque of up to 5.3 kgf·cm, the KST X08 is suitable for F5J, F5D, F3J, and many other high-performance models.

Due to their extreme reliability and performance, these servos are also very well suited for use in special effects departments in the film and cinema industries. They are also used in robotics, RC models, and other highly demanding applications.

Features:

• Compact and lightweight design
• Excellent torque and speed
• Designed for high-performance RC gliders
• Excellent heat dissipation

Technical Specifications:

• Rated voltage: DC 7.4V
• Voltage range: DC 3.8V–8.4V
• Torque: 2.4Kgf.cm@3.8V, 3.8Kgf.cm@6.0V, 4.84Kgf.cm@8.4V, 5.3Kgf.cm@8.4V
• Speed: 0.18 sec/60°@3.8V, 0.15 sec/60°@6.0V, 0.12 sec/60°@7.4V, 0.09 sec/60°@8.4V
• Operating frequency: 1520 μs/333 Hz
• Standard travel angle: ±60° = 120° total
• Temperature range: -10°C to +65°C
• Soft start: Programmable
• Programmable: Yes
• Housing material: Aluminum alloy
• Motor type: Coreless DC motor
• Gear set material: Hardened steel
• Position sensor: Potentiometer

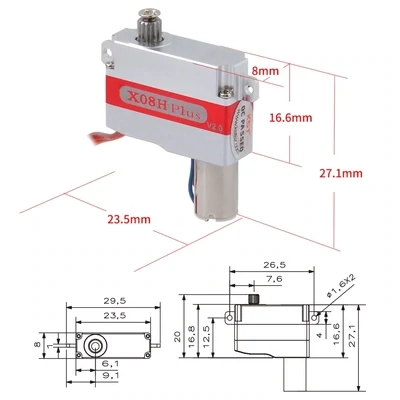

• Housing dimensions: 23.5 × 8 × 16.8 mm ± 0.2 mm
• Weight: 9 g ±10%
