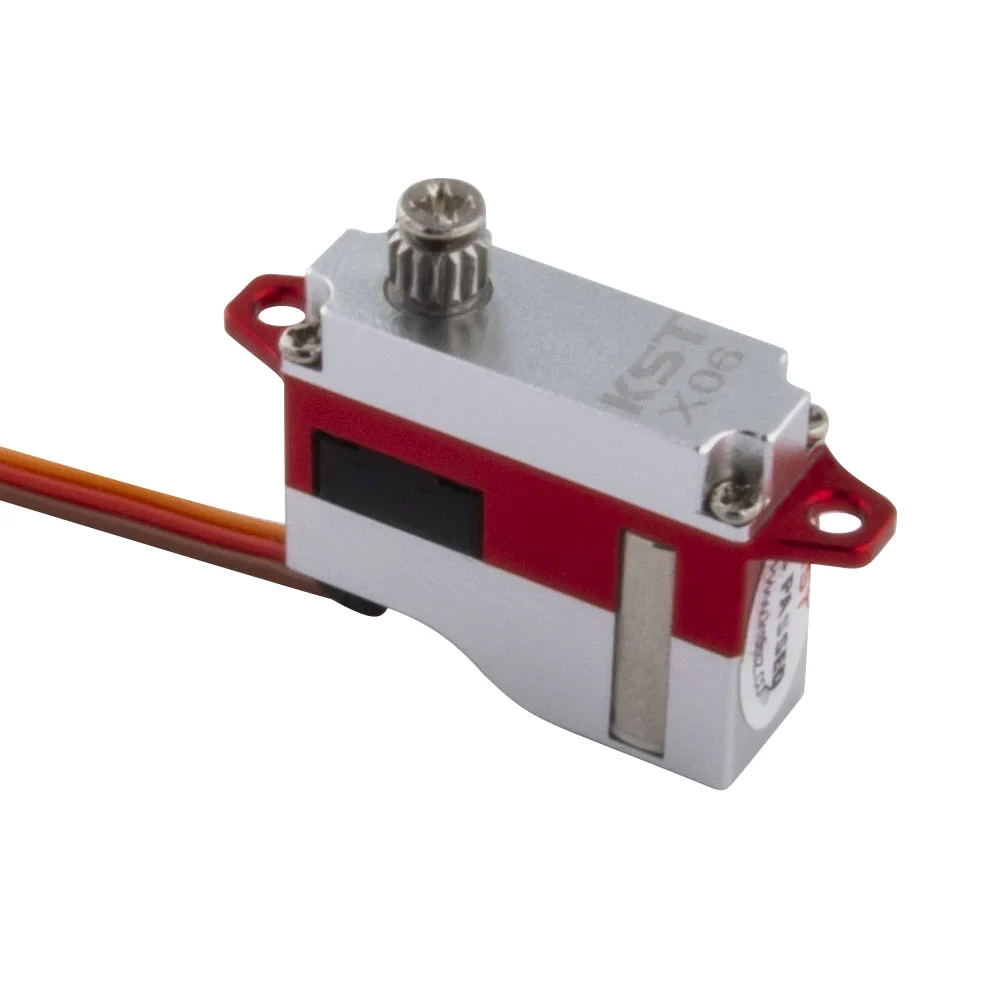

The X06 V6.0 servo is the ideal choice for standard mounting brackets—best suited for the fuselage or other installations where the servo is mounted upright.

Power in a small package. The V6.0 servo is now fully programmable with the KST Tool #1 and features a new custom chip that ensures greater precision, similar to the A08 V6 servos.

The X06 V6.0 servo has been developed over many years and is a leader in the market for ultra-small high-performance servos. With a thickness of 7 mm and a tiny footprint, the X06 V6.0 servo is the perfect solution for 1-meter DLGs and other small gliders.

The all-metal construction sets the X06 V6.0 servo apart from its competitors with plastic mechanisms, which bend under pressure. The high torque and precision of the X06 allow you to tune your model to its highest performance potential.

Features:

• Compact and lightweight design
• Excellent torque and speed
• Designed for high-performance RC gliders
• Excellent heat dissipation
• Ultra-slim 7mm housing

Technical Specifications:

• Nominal voltage: DC 3.8V–8.4V
• Voltage range: DC 6.0V
• Rated torque: 4 N·cm @ 6.0 V
• Rated speed: 0.20 sec/60° @ 6.0V
• Rated current: 0.22A @ 6.0V
• Torque: 0.8Kgf.cm@3.8V, 1.5 kgf·cm @ 6.0V, 1.8Kgf.cm@8.4V
• Speed: 0.12 sec/60° @ 3.8V, 0.08 sec/60° @ 6.0V, 0.07 sec/60° @ 8.4V
• Bypass current: 0.58A at 6.0V
• Standard travel angle: ±60° = 120° total travel
• Operating temperature range: -20°C to +65°C
• Housing dimensions: 20 mm × 7 mm × 16.6 mm ±0.1 mm
• Weight: 6g±10%
• Motor type: Coreless DC motor
• Housing material: Aluminum alloy
• Gear set material: Steel gears
• Position sensor: Potentiometer
• Ball bearings: 2BB
