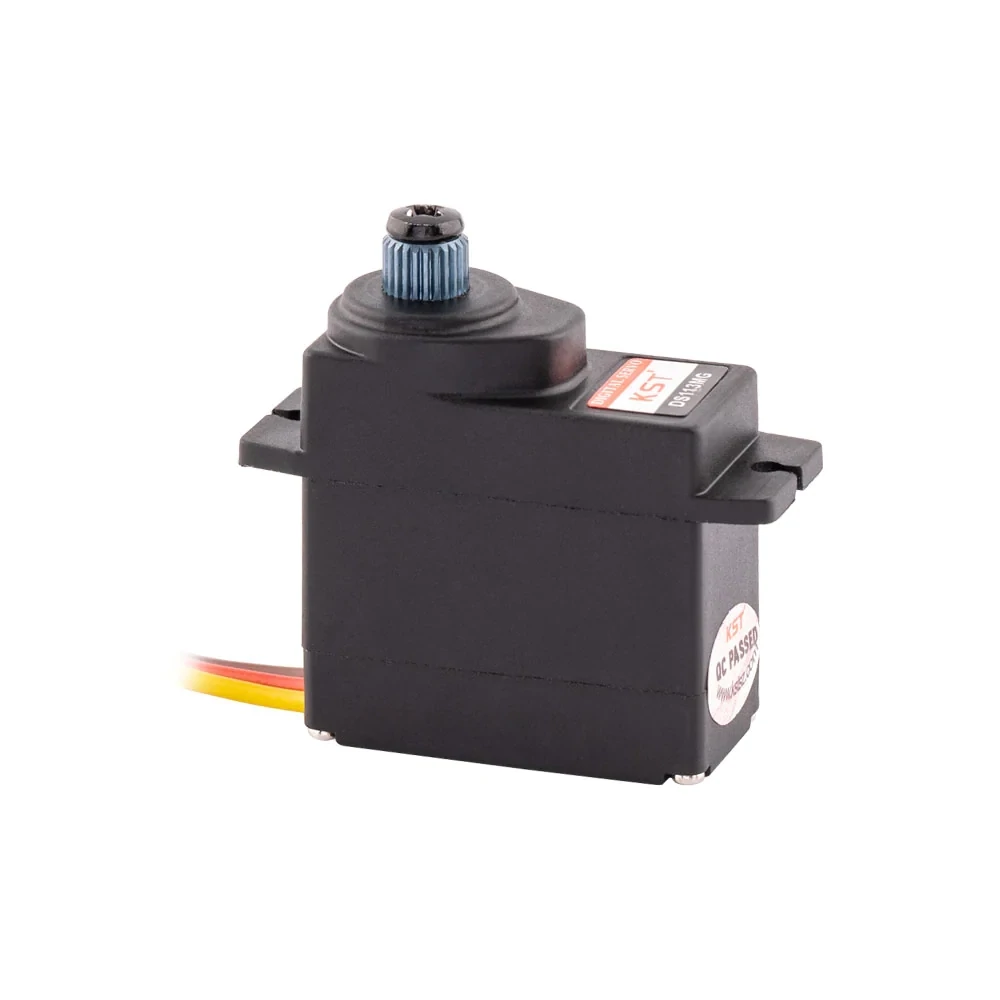

The new DS113MG V6.0 digital servo, featuring high torque and amazing speed in a compact and lightweight design, is ideal for small electric RC airplanes and glider fuselages. The DS113MG V6.0 servo delivers a brilliant torque of 3.5 kgf·cm and a super-fast speed of 0.09 sec/60° at 8.4V, with high precision and reliability.

Weighing only 12g, the DS113MG V6.0 is a great servo for small electric RC airplanes and glider fuselages. The DS113MG V6.0 servo is designed for use with a 2S LiFe or 2S LiPo battery and can be powered directly by a 2S LiPo without requiring a ESC. Additionally, the newly added programming feature can take your flying experience to the next level. The DS113MG V6.0 is the high-voltage replacement for the original DS113MG servo.

Features:

• High quality and competitive price
• Support for 4.8V–8.4V voltages
• Programmable
• Excellent heat dissipation
• Compact and lightweight design
• Ultra-high torque and excellent speed
• Ideal for small electric RC airplanes and glider fuselages

Technical Specifications:

• Rated voltage: DC 6.0V
• Voltage range: DC 4.8V–8.4V
• Torque: 2.0Kgf.cm@4.8V / 2.5Kgf.cm@6.0V / 3.0Kgf.cm@7.4V / 3.5Kgf.cm@8.4V
• Speed: 0.13 sec/60°@4.8V / 0.11 sec/60°@6.0V / 0.10 sec/60°@7.4V / 0.09 sec/60°@8.4V
• Short-circuit current: 1.00A@4.8V / 1.20A@6.0V / 1.40A@7.4V / 1.60A@8.4V
• Operating frequency: 1520μs/333Hz
• Standard travel angle: ±50° = 100° total
• Temperature range: -10°C to +65°C
• Soft start: Programmable
• Programmable: Yes
• Motor type: Core motor
• Housing material: Plastic
• Gear set material: Metal gears
• Position sensor: Potentiometer
• Ball bearings: 1BB
• Housing dimensions: 24mm x 12mm x 26.3mm ±0.2mm
• Weight: 12g ±10%
