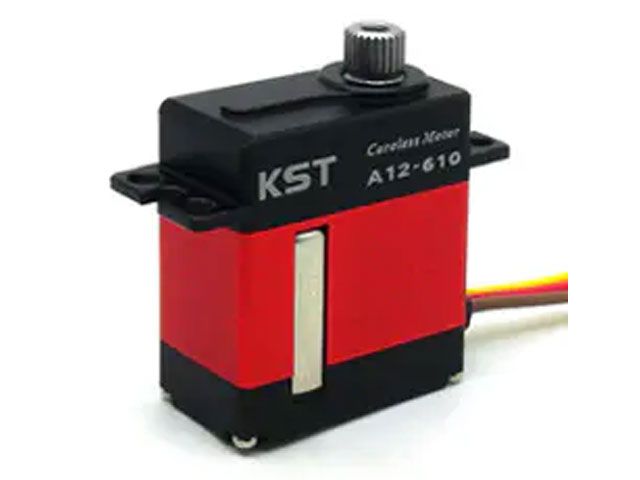

The new benchmark in the 12mm servo class—the KST A12-610!

Wherever standard 12mm servos are too weak but there’s no room for a 15mm servo, KST now has the perfect solution. The A12-610 delivers 9 kg/cm of torque with dimensions of 13x28.2x27mm, making it a perfect fit for all existing cutouts.

Thanks to its aluminum housing and metal gears, it is durable and reliable.
KST’s electronics and motors are true powerhouses and extremely fast!

The soft start protects your model and servo from extreme servo movements during startup. If a control surface is not in the center position when you turn on your model, the servo will slowly move to the center position and then function normally. This is extremely gentle on your servo, linkage, and model, especially with large control surfaces.

Technical Specifications

- Operating voltage (max.) [V]: 4.8–8
.4 - Torque [kg/cm]@4.8V: 5.5
- Torque [kg/cm
]@6.0V: 6.5 - Torque [kg/cm]@7.4V: 8.0
- Torque [kg/cm]@8.4V: 9.0-
Actuation time [s/60°]@4.8V: 0.13- Actuation
time [s/60°]@6.0V: 0.
12- Actuation time [s/60°]@7.4V: 0.
11- Actuation time [s/60°]@8.4V: 0.
10- Width [mm]: 12.0-
Length [mm]: 23.0-
Height [mm]: 27.0-
Weight [g]: 20.0- Motor
type:
Coreless- Frequency range:
1520us/333Hz- Gear type: Steel-
Bearing type:
2BB- Gear ratio:
25T-5- Servo type: Mini-
Electronics: Digital-
Position sensor:
Potentiometer- Waterproof: No-
Manufacturer:
KST- Soft start: Yes

Package Contents

- KST A12-610

- Small parts
