Version 2 schließt die Türen, wenn das Fahrwerk ausgefahren ist, während Version 1 die Türen offen hält. Dieser elektronische Schalter wird verwendet, um die Reihenfolge der 2 elektrischen Einzug von Ihrem Sender Getriebe Kanalschalter zu steuern. Auch eine Radbremse Modul für JP Hobby enthalten.

More info

JP Hobby Bicycle Sequencer Retract Box ER-200 V1 Landing Gear with Break Module

This electronic switch is used to control the sequence of 2 electric retract from your transmitter gear channel switch. Also include a wheel brake module for JP Hobby. It is a replacement control box for the JP Hobby electric retracts.

This version equiped with a 2s plug is for use with the ER-200 retracts from JP Hobby.

<strong>Warning: Be care of using this sequencer for a 2 retracts landing gear only</strong>

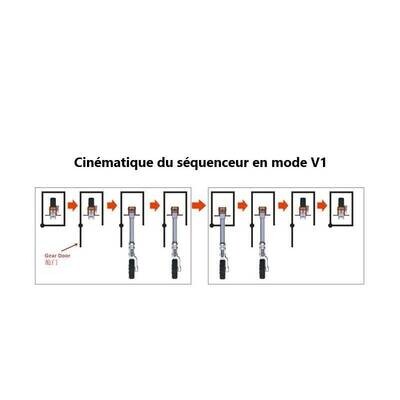

<strong>Note : Version 2 closes the doors when the gear is down while version 1 keep the doors open.</strong>

<strong>WARNING: Servos which controlling the gear doors must imperatively be H.V. (High Voltage) type </strong>

Specifications

• Input voltage: 7.4V to 8.4V (2 cells lipo)

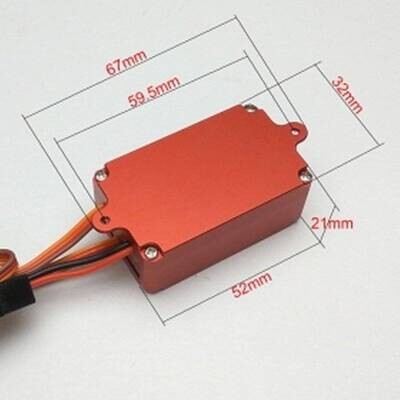

• Size: 52 x 32 x 21 mm
• Weight: 32 g

Compatibility
