ER-150 Einziehfahrwerk Version - Version 2 schließt die Türen, wenn das Fahrwerk ausgefahren ist, während Version 1 die Türen offen hält. Dieser elektronische Schalter wird verwendet, um die Sequenz von 2 elektrischen Einziehfahrwerken von Ihrem Sender Getriebe Kanalschalter zu steuern. Es handelt sich um eine Ersatzsteuerungsbox für die elektrischen Einziehfahrwerke von JP Hobby.

More info

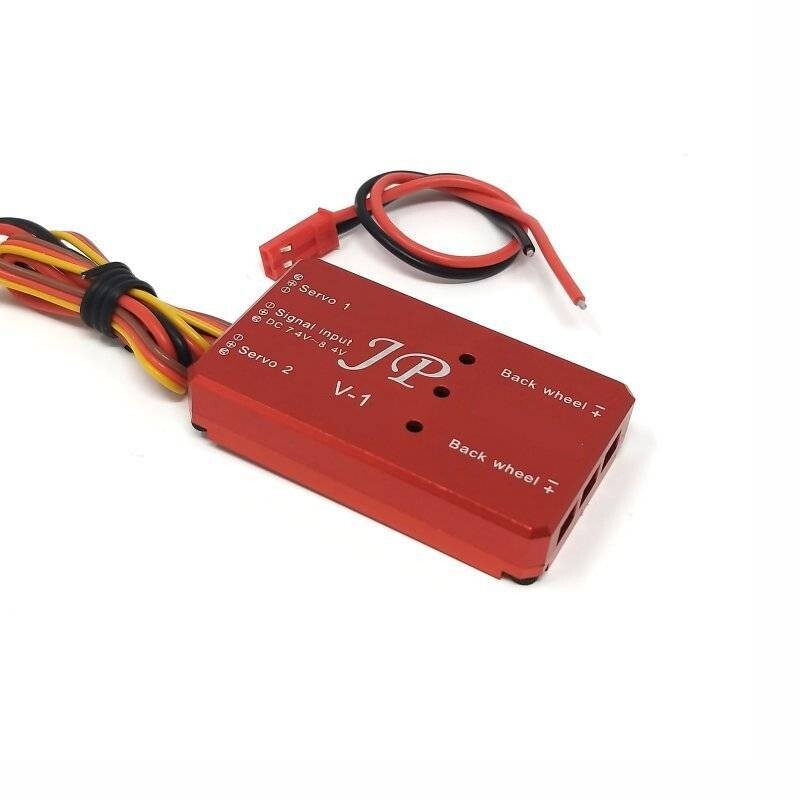

JP Hobby Bicycle Sequencer Retract Box ER-150 V1 (HV)

This electronic switch is used to control the sequence of 2 electric retracts from your transmitter gear channel switch. It is a replacement control box for the JP Hobby electric retracts.

This version equiped with a 2s plug is for use with the ER-150 retracts from JP Hobby.

<strong>Warning: Be care of using this sequencer for a 2 retracts landing gear only</strong>

<strong>Note : Version 2 closes the doors when the gear is down while version 1 keep the doors open.</strong>

<strong>WARNING: Servos which controlling the gear doors must imperatively be H.V. (High Voltage) type</strong>

Connections

• Connect the electric retracts mechanism for the main gear to the "back wheel" plug and connect the nose wheel mechanism to the "front wheel" plug
• Connect the doors servos to the "Servo 1" and "Servo 2" plugs
• Connect the "signal input" wire and plug to your receiver "gear" channel
• Plug a 2s battery

Specifications

• Input voltage: 7.4 to 8.4V (2s)
• Size: 52 x 30 x 10 mm
• Weight: 22 g
