Version 2 closes the doors when the landing gear is extended, while Version 1 keeps the doors open. This electronic switch is used to control the sequence of two electric retractable landing gears via the gear channel switch on your transmitter. It is a replacement control box for JP Hobby's electric retractable landing gears.

More info

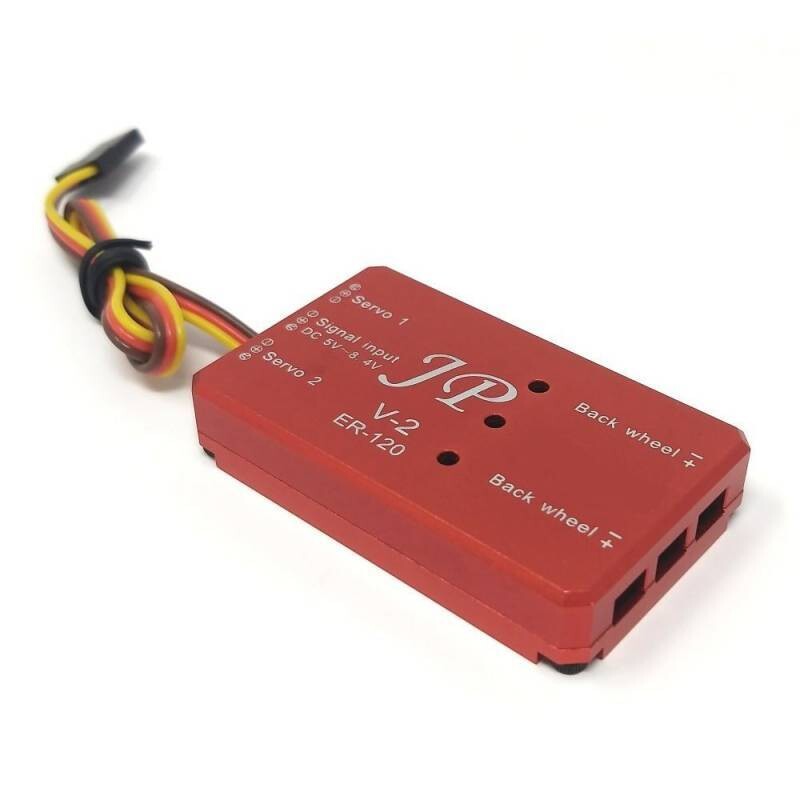

JP Hobby Bicycle Sequencer Retract Box ER-120 V2

This electronic switch is used to control the sequence of two electric retracts from your transmitter's gear channel switch. It is a replacement control box for the JP Hobby electric retracts.

Warning: Be care of using this sequencer for a 2 retracts landing gear only  Note : Version 2 closes the doors when the gear is down while version 1 keep the doors open.

Connections

Connect the electric retract mechanism for the main gear to the "back wheel" plug and connect the nose wheel mechanism to the "front wheel" plug

Connect the door servos to the "Servo 1" and "Servo 2" plugs

Connect the "signal input / DC 6V" wire and plug to your receiver's "gear" channel

Specifications

• Input voltage: 5V to 6.4V
• Size: 52 x 32 x 10 mm
• Weight: 22 g
