Version 2 closes the doors when the gear is down while version 1 keep the doors open.

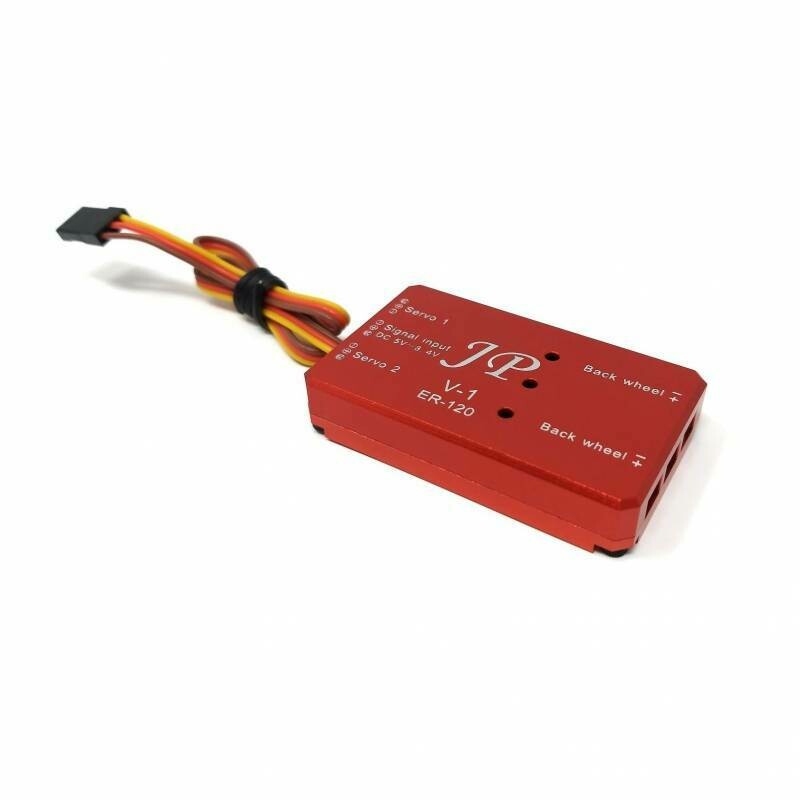

This electronic switch is used to control the sequence of 2 electric
retract from your transmitter gear channel switch. It is a replacement
control box for the JP Hobby electric retracts. It will work with both
sizes of the JP Hobby retracts and other retracts brands.
Serial | JP Hobby ER-005 (6kg), ER-010, JP Hobby ER-120 (12kg) |
Sizes: | 52 x 32 x 10 mm |
Weight (gr): | 22 gr |
Connection: | JR / Graupner / Futaba |
This electronic switch is used to control the sequence of 2 electric retracts from your transmitter gear channel switch. It is a replacement control box for the JP Hobby electric retracts. It will work with both sizes of the JP Hobby retracts and other retracts brands.
Warning: Be care of using this sequencer for a 2 retracts landing gear only
Note : Version 2 closes the doors when the gear is down while version 1 keep the doors open.
Connect the electric retracts mechanism for the main gear to the "back wheel" plug and connect the nose wheel mechanism to the "front wheel" plug
Connect the doors servos to the "Servo 1" and "Servo 2" plugs
Connect the "signal input / DC 6V" wire and plug to your receiver "gear" channel
